Lumark (Cooper Lighting Solutions)

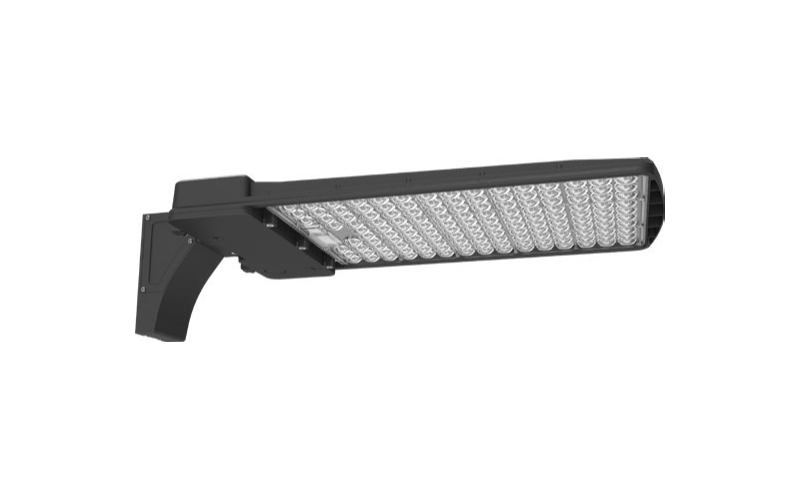

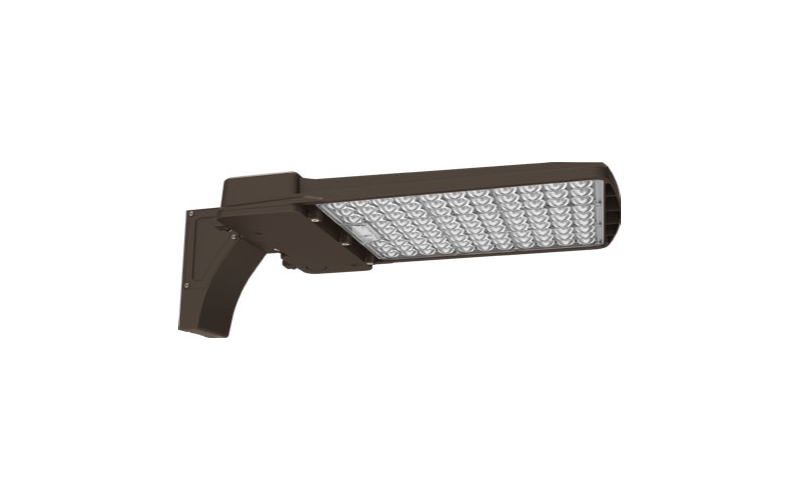

XAS. ALL-SELECTABLE AREA SITE.
Configure
Add to project
RESOURCES
DESCRIPTION
The XAS All-Selectable Area Site series delivers powerful, high-performance illumination with exceptional flexibility for a wide range of outdoor applications. Available in 180W and 300W configurations, it provides adjustable outputs up to 46,000 lumens, with selectable 3000K, 4000K, and 5000K color temperatures and Type III, IV, and V distributions. Each fixture features versatile mounting options and a twistlock photocell for streamlined installation and control. Designed for parking lots, roadways, and large outdoor spaces, the XAS series ensures reliable, efficient, and adaptable lighting performance.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12.46"13.4"L: 24.17"28.5"H: 9.52"9.5"
- Light SourceLED
- CCT/Color3000K4000K5000KField Select CCT
- CRI80
- Watt(Approx)72-180 W120-300 Wswitchable
- Lumens(Approx)12298-28199 Lm21311-45863 Lmswitchable
- OpticsDirectType IIIType IVType V
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance141000 h
- CertificatesUL/CULRoHS
- EnvironmentIP65
- Mounting TypePole/Mast ArmWall SurfaceTrunnion
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeXAS-SFPM-B
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
