Lumark (Cooper Lighting Solutions)

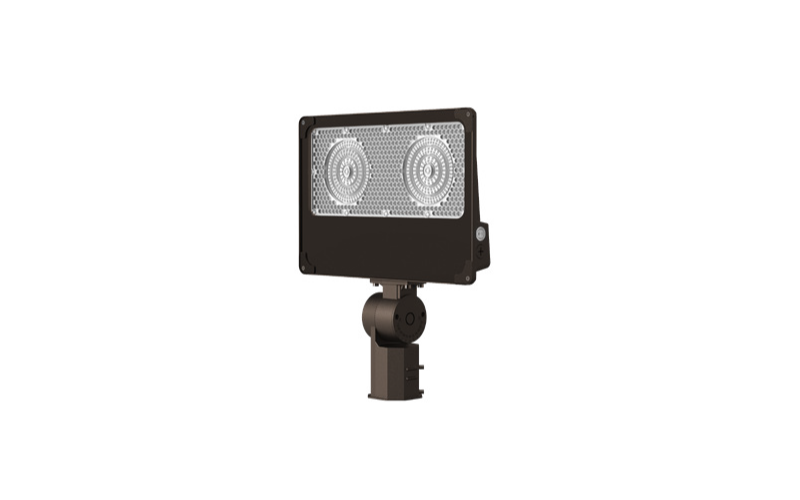

XSF. ALL-SELECTABLE FLOOD LIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lumark XSF All-Selectable Floodlight delivers powerful, energy-efficient illumination with exceptional flexibility for a wide range of outdoor applications. Featuring 144 configurations in each SKU, this fixture offers 4 selectable wattages from 3,840 to 49,500 lumens, 3 selectable CCTs from 3000K to 5000K, and 3 selectable beam angles including NEMA 4x4, 5x5, and 6x6. With two mounting options included per fixture—Knuckle & Yoke or Slipfitter & Trunnion—installation can be tailored to the needs of the project. A selectable dusk-to-dawn photocontrol with on/off control enhances efficiency and convenience, while 120–347V operation and 80 CRI ensure dependable performance and quality illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.37"2.41"2.36"2.53"L: 10.91"15.51”14.67”15.51"14.67"19.46”19.46"H: 10.04”10.55"10.04"16.91"19.9"
- Light SourceLED
- CCT/Color3000K4000K5000KField Select CCT
- CRI80
- Watt(Approx)24-60 W40-100 W80-200 W120-300 Wswitchable
- Lumens(Approx)3960-9900 Lm6600-16500 Lm13200-33000 Lm19800-49600 Lmswitchable
- OpticsDirectGeneral Diffused
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULDLC*RoHS
- EnvironmentIP66
- Mounting TypeTrunnionYokeKnuckleSlip Fitter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeXSF
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
