Luminis (Acuity Brands Lighting)
BVA34. BELLEVUE SLIM POLE MOUNT.
Configure
Add to project




RESOURCES
DESCRIPTION

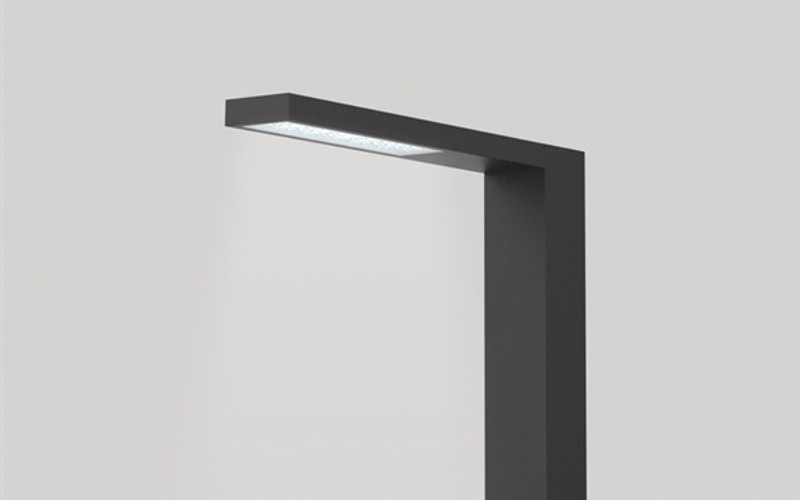

BVA34 is a rectilinear pole mount luminaire delivering high performance street and area lighting in a modern, slim design.

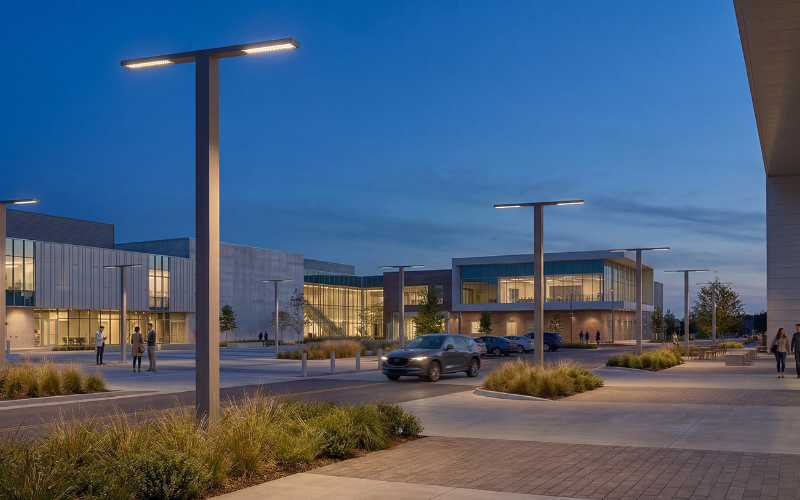

Bellevue Slim is a rectilinear pole mount luminaire designed for street and area lighting, delivering advanced optical performance in a modern, slim silhouette. Its single head outputs up to 18,700 lumens, creating a uniformly illuminated surface through the advanced BVA optical system. Bold, rigorous, and composed, Bellevue Slim columns make a clear rectilinear statement—ideal for plazas, civic squares, and open concourses where form defines space. Available in heights from 10’ to 20’, each column supports single or twin configurations at the same height, with five standard IES distributions (Type I, II, III, IV, and V). Twin configurations give possibility of having different distribution and lumen output for each head. A turtle friendly true amber LED option is offered, and all luminaires are IP65 rated.
Bellevue Slim is a rectilinear pole mount luminaire designed for street and area lighting, delivering advanced optical performance in a modern, slim silhouette. Its single head outputs up to 18,700 lumens, creating a uniformly illuminated surface through the advanced BVA optical system. Bold, rigorous, and composed, Bellevue Slim columns make a clear rectilinear statement—ideal for plazas, civic squares, and open concourses where form defines space. Available in heights from 10’ to 20’, each column supports single or twin configurations at the same height, with five standard IES distributions (Type I, II, III, IV, and V). Twin configurations give possibility of having different distribution and lumen output for each head. A turtle friendly true amber LED option is offered, and all luminaires are IP65 rated.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 34”H: 10'12'14'16'18'20'
- Light SourceLED
- CCT/ColorAmber (WildLife)2700K3000K3500K4000K
- CRI80
- Watt(Approx)27 W77 W99 W123 W150 W174 W
- Lumens(Approx)3057 Lm8127 Lm10204 Lm12203 Lm14396 Lm16189 Lm
- OpticsDirectType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentMarine
- Mounting TypePole/Mast Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
