Luminis (Acuity Brands Lighting)
BVA40. BELLEVUE SLIM POLE MOUNT.
Configure
Add to project




RESOURCES
DESCRIPTION

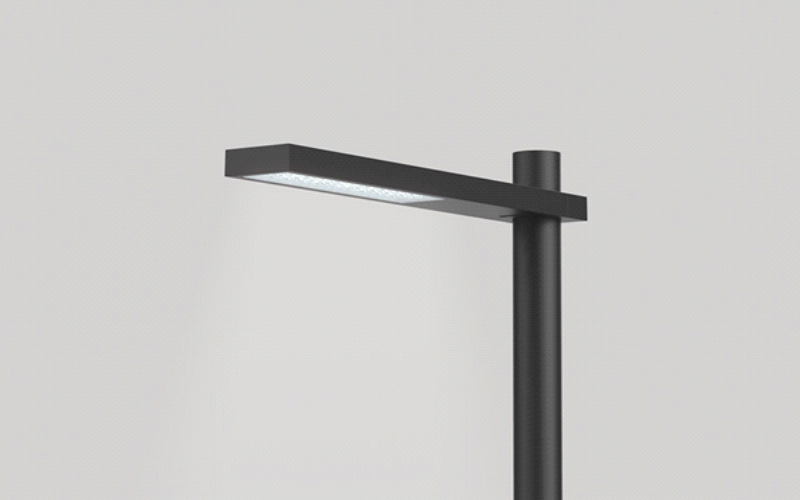

BVA40 is a clamp mount luminaire for high performance area lighting with a light, flexible architectural expression.

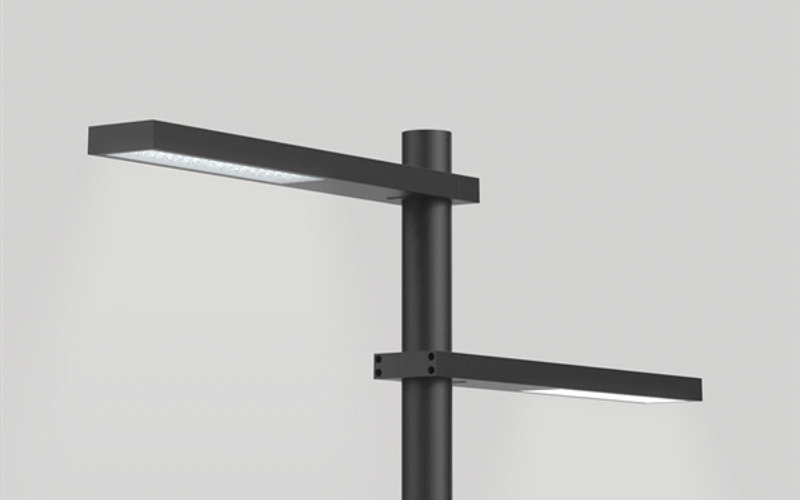

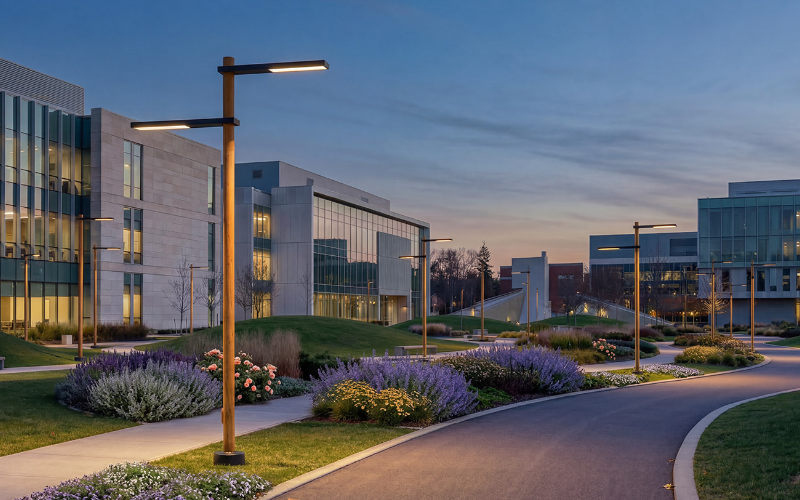

Bellevue Slim brings high performance area lighting to a clamp mount form that emphasizes versatility and visual lightness. Delivering up to 18,700 lumens, it features advanced optics and a single luminaire head as standard, with additional heads available through custom configurations, allowing different light distributions and lumen outputs within the same installation. Light, lively, and flexible, BVA40 is well suited for parks, campuses, and architecturally expressive sites where compositional freedom matters. A tenon clamp cast directly into the main housing creates a seamless, integrated form, designed specifically for 4 inch poles. Standard single head configurations are complemented by custom twin and clustered options up to mounting heights of 20 feet, offering unwavering stability while enabling dynamic, design driven layouts. BVA40 is designed for use with 4" round poles only.
Bellevue Slim brings high performance area lighting to a clamp mount form that emphasizes versatility and visual lightness. Delivering up to 18,700 lumens, it features advanced optics and a single luminaire head as standard, with additional heads available through custom configurations, allowing different light distributions and lumen outputs within the same installation. Light, lively, and flexible, BVA40 is well suited for parks, campuses, and architecturally expressive sites where compositional freedom matters. A tenon clamp cast directly into the main housing creates a seamless, integrated form, designed specifically for 4 inch poles. Standard single head configurations are complemented by custom twin and clustered options up to mounting heights of 20 feet, offering unwavering stability while enabling dynamic, design driven layouts. BVA40 is designed for use with 4" round poles only.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 40"H: 10'12'14'16'18'20'16''
- Light SourceLED
- CCT/ColorAmber (WildLife)2700K3000K3500K4000K
- CRI80
- Watt(Approx)27 W77 W99 W123 W150 W174 W
- Lumens(Approx)3057 Lm8127 Lm10204 Lm12203 Lm14396 Lm16189 Lm
- OpticsDirectType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentMarine
- Mounting TypePole/Mast Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBVA40
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
