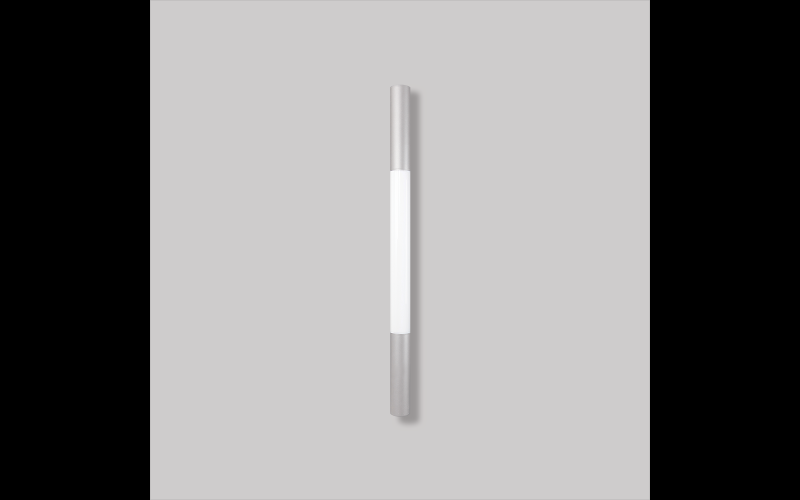

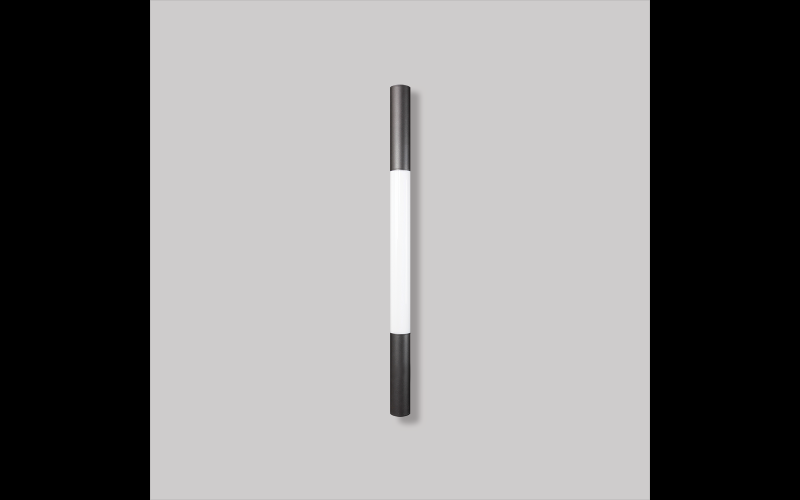

CL325. Lumistik Ø3'' wall mount with acrylic diffuser.
Configure
Add to project



RESOURCES
DESCRIPTION
CL325 is a Ø3" wall mount luminaire with white translucent acrylic diffuser. It delivers up to 2,250 lumens.
Lumistik wall mount luminaires are ADA compliant and suited for interior or exterior applications where public space enhancement is the goal. The LED is contained in a white UV stabilized high impact acrylic sealed cylinder, designed to provide uniform illumination. This luminaire is available with an optional uplight and downlight module. Luminaires are available with white or color changing RGBW. Fixture housing varies with each model. Luminaires are rated IP65 for exterior wet locations.
Lumistik wall mount luminaires are ADA compliant and suited for interior or exterior applications where public space enhancement is the goal. The LED is contained in a white UV stabilized high impact acrylic sealed cylinder, designed to provide uniform illumination. This luminaire is available with an optional uplight and downlight module. Luminaires are available with white or color changing RGBW. Fixture housing varies with each model. Luminaires are rated IP65 for exterior wet locations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 3"H: 47"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KRGBW
- CRI80
- Watt(Approx)9 W16 W21 W24 W
- Lumens(Approx)830 Lm1325 Lm1640 Lm2250 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULADA
- EnvironmentIP65MarineCorrosion Resistant
- Mounting TypeWall Surface
- Housing
- Housing Depth
