Luminis (Acuity Brands Lighting)

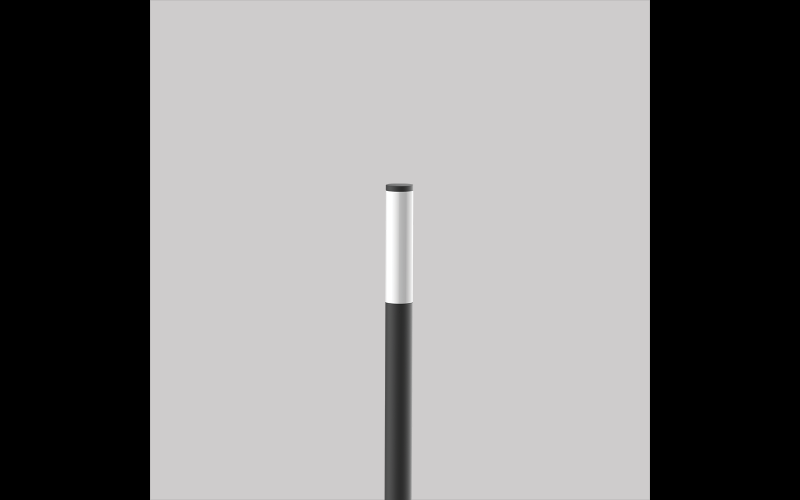

CL620. Lumistik Ø6'' column with acrylic diffuser.
Configure
Add to project
RESOURCES
DESCRIPTION
CL620 is a Ø6" column with a high impact white translucent acrylic diffuser. It delivers up to 5,700 lumens.
Lumistik columns, available in a wide range of heights, are suited for exterior applications where public space enhancement is the goal. They feature an LED that is contained in a white UV stabilized high impact acrylic sealed cylinder, designed to provide uniform illumination. They are available with white or color changing RGBW. Columns are rated IP65 for exterior wet locations.
Lumistik columns, available in a wide range of heights, are suited for exterior applications where public space enhancement is the goal. They feature an LED that is contained in a white UV stabilized high impact acrylic sealed cylinder, designed to provide uniform illumination. They are available with white or color changing RGBW. Columns are rated IP65 for exterior wet locations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 6"H: 96”120”144”168”192”
- Light SourceLED
- CCT/Color2700K3000K3500K4000KRGBW
- CRI80
- Watt(Approx)11 W18 W30 W35 W42 W59 W
- Lumens(Approx)1210 Lm2041 Lm2046 Lm3170 Lm4270 Lm5695 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSA
- EnvironmentIP65MarineCorrosion Resistant
- Mounting TypeLight Column
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCL6
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
