Luminis (Acuity Brands Lighting)
EC610. Eclipse Mini Ø6'' casted base pole with 4 struts and acrylic diffuser.
 Configure
 Add to project

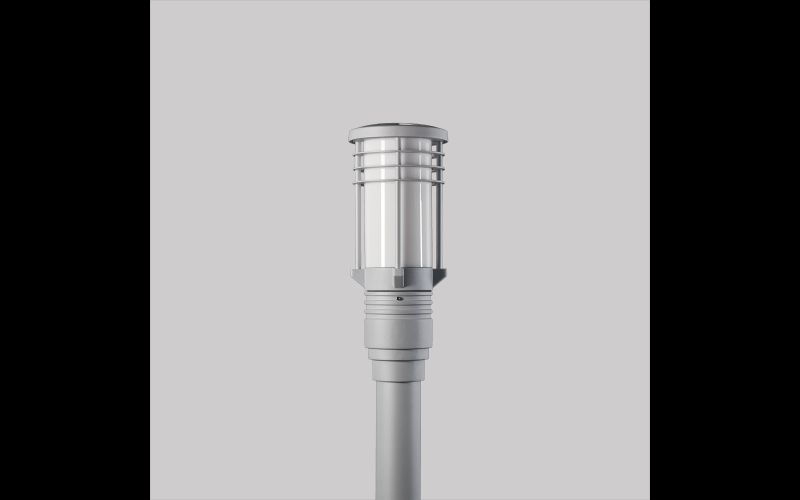

Luminis. EC610. Eclipse Mini Ø6'' casted base pole with 4 struts and acrylic diffuser.

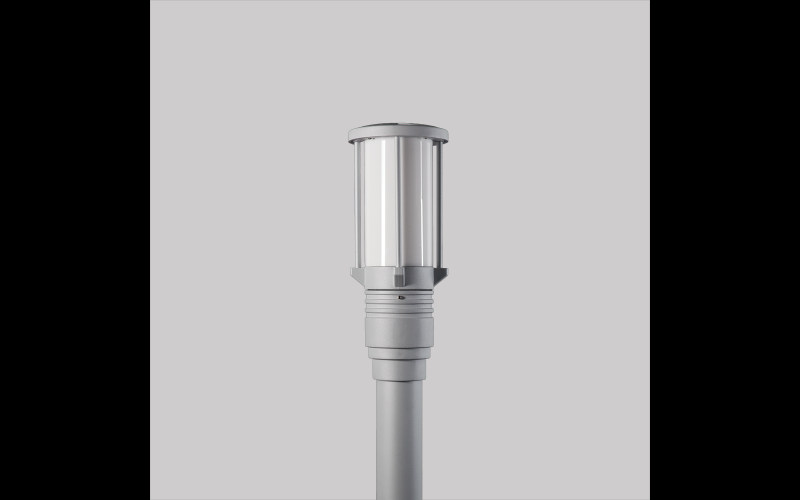

Luminis. EC610. Eclipse Mini Ø6'' casted base pole with 4 struts and acrylic diffuser.
Luminis. EC610. Eclipse Mini Ø6'' casted base pole with 4 struts and acrylic diffuser.
Luminis. EC610. Eclipse Mini Ø6'' casted base pole with 4 struts and acrylic diffuser.
RESOURCES
DESCRIPTION
EC610 is a pole or post top mount luminaire with a cylindrical acrylic diffuser and a Ø6" casted base. It delivers up to 2,800 lumens.

Combining functionality with a decorative design, the Eclipse family of luminaires is ideal for parks, pedestrian areas, and commercial perimeters. Moulded silicone optics offer greater color stability and performance. This pole mount luminaire features a high impact white translucent UV stabilized acrylic diffuser. Options include a top shade, 3 louvers, or a house side shield. Luminaires are rated IP65 for exterior wet locations.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 9”20”
    L: 9”20”
    H: 22”
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80
  • Watt(Approx)
    15 W24 W33 W
  • Lumens(Approx)
    1163 Lm2011 Lm2812 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277VUNC 347-480V347V480V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CUL
  • Environment
    IP65MarineCorrosion Resistant
  • Mounting Type
    Pole/Mast ArmPole/Post Top
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
