Luminis (Acuity Brands Lighting)

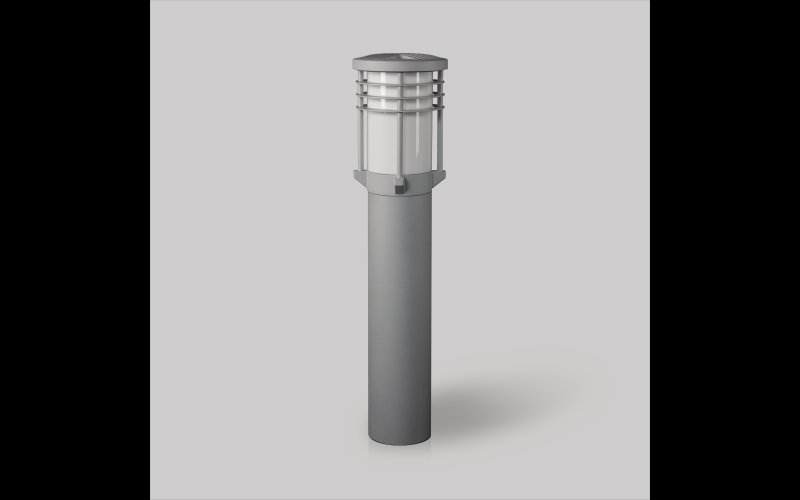

EC630. Eclipse Mini Ø6'' bollard with 4 struts and acrylic diffuser.
Configure
Add to project
RESOURCES
DESCRIPTION
EC630 is a Ø6" bollard with a cylindrical acrylic diffuser and offered with a variety of decorative options. It delivers up to 2,700 lumens.

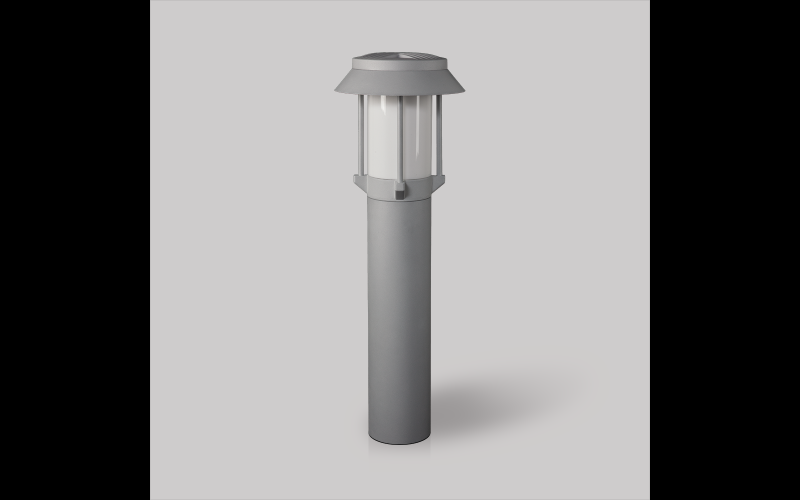

Combining functionality with a decorative design, the Eclipse family of luminaires is ideal for parks, pedestrian areas, and commercial perimeters. Moulded silicone optics offer greater color stability and performance. This bollard features a high impact white translucent UV stabilized acrylic diffuser. Options include a top shade, or 3 louvers. It is rated IP65 for exterior wet locations.
Combining functionality with a decorative design, the Eclipse family of luminaires is ideal for parks, pedestrian areas, and commercial perimeters. Moulded silicone optics offer greater color stability and performance. This bollard features a high impact white translucent UV stabilized acrylic diffuser. Options include a top shade, or 3 louvers. It is rated IP65 for exterior wet locations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.7”L: 8.7”H: 42”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)13 W19 W34 W49 W
- Lumens(Approx)825 Lm1100 Lm1894 Lm2656 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277VUNC 347-480V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentIP65MarineCorrosion Resistant
- Mounting TypeBollard
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEC630
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
