Luminis (Acuity Brands Lighting)

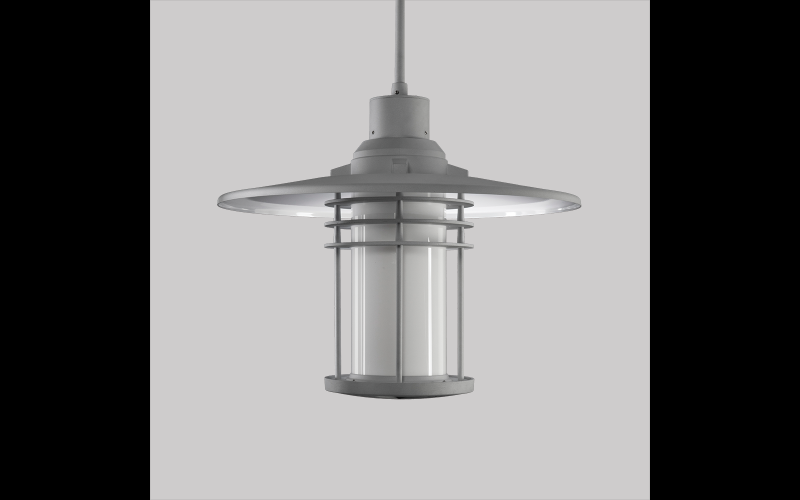

EC840. Eclipse Maxi Ø8'' pendant with 4 struts and acrylic diffuser.
 Configure
 Add to project
Luminis. EC840. Eclipse Maxi Ø8'' pendant with 4 struts and acrylic diffuser.
Luminis. EC840. Eclipse Maxi Ø8'' pendant with 4 struts and acrylic diffuser.
Luminis. EC840. Eclipse Maxi Ø8'' pendant with 4 struts and acrylic diffuser.
RESOURCES
DESCRIPTION
EC840 is a pendant luminaire with an acrylic diffuser and is available with catenary, cable or stem mount. It delivers up to 4,600 lumens.

Combining functionality with a decorative design, the Eclipse family of luminaires is ideal for parks, pedestrian areas, and commercial perimeters. Moulded silicone optics offer greater color stability and performance. This pendant features a high impact white translucent UV stabilized acrylic diffuser. Options include a top shade, or 3 louvers.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 12”30”
    L: 12”30”
    H: 25”
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80
  • Watt(Approx)
    21 W36 W50 W48 W
  • Lumens(Approx)
    1805 Lm3035 Lm3891 Lm4553 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%0-10V
  • Controls/Network
    nLight®Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V120V277VUNC 347-480V347V480V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CUL
  • Environment
    WetMarineCorrosion Resistant
  • Mounting Type
    PendantCatenary
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
