Luminis (Acuity Brands Lighting)

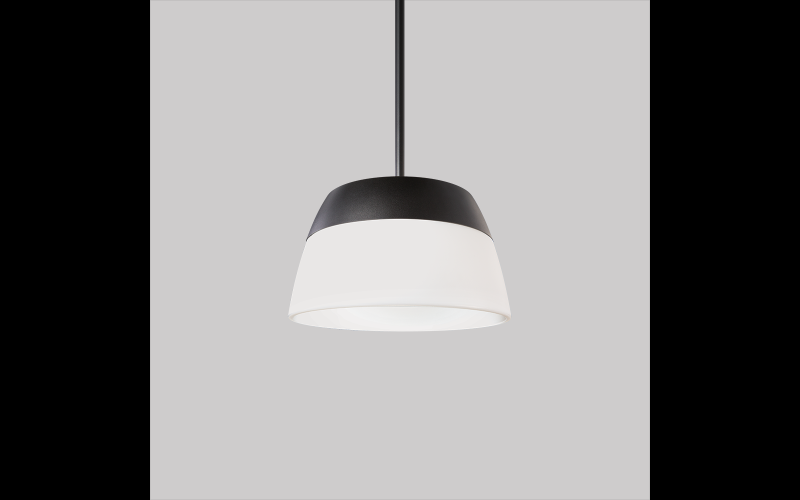

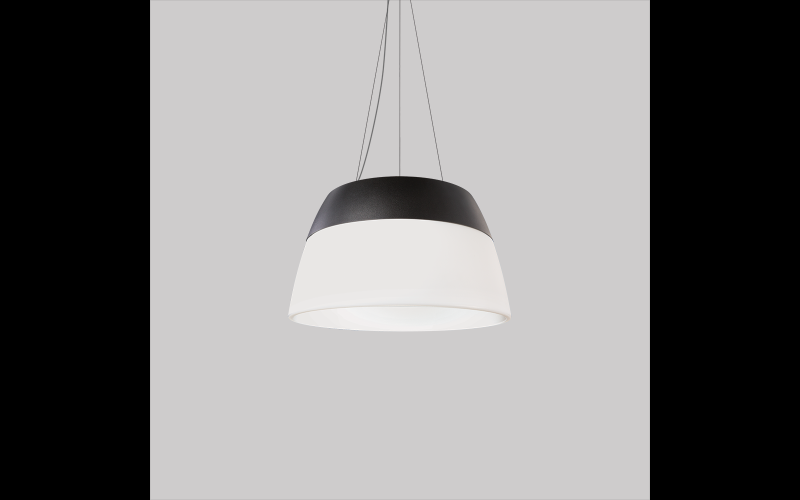

HC1600. Hollowcore Ø19'' pendant luminaire with semi-opaque diffuser lens.
Configure
Add to project
RESOURCES
DESCRIPTION
HC1600 is a Ø19" high power pendant with an attractive hollow center and semi-opaque diffuser lens. It delivers up to 13,000 lumens.
Hollowcore brings a whole new dimension to the classic high bay shape. It is suitable for both traditional applications or more contemporary spaces such as corporate, retail, educational or hospitality. Hollowcore is designed around a circular LED light engine, enabling an airy, open center concept. It features a high efficiency lens to achieve a lambertian distribution. An optional batwing distribution uplight offers uniform light and minimal cave effect.
Hollowcore brings a whole new dimension to the classic high bay shape. It is suitable for both traditional applications or more contemporary spaces such as corporate, retail, educational or hospitality. Hollowcore is designed around a circular LED light engine, enabling an airy, open center concept. It features a high efficiency lens to achieve a lambertian distribution. An optional batwing distribution uplight offers uniform light and minimal cave effect.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 19"L: 19"H: 11"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)7 W15 W29 W23 W42 W61 W77 W108 W
- Lumens(Approx)1039 Lm2144 Lm3272 Lm4655 Lm3199 Lm6338 Lm7750 Lm9731 Lm
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%0-10VDMX/RDM
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHC1600
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
