Luminis (Acuity Brands Lighting)

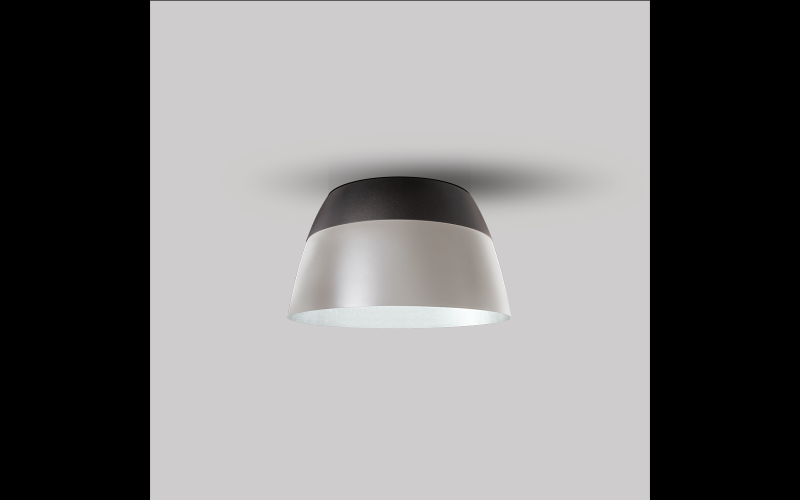

HC1615. Hollowcore Ø19'' ceiling luminaire with aluminum reflector.
 Configure
 Add to project
Luminis. HC1615. Hollowcore Ø19'' ceiling luminaire with aluminum reflector.
Luminis. HC1615. Hollowcore Ø19'' ceiling luminaire with aluminum reflector.
Luminis. HC1615. Hollowcore Ø19'' ceiling luminaire with aluminum reflector.
RESOURCES
DESCRIPTION
HC1615 is a Ø19" high power ceiling with an aluminum reflector. It delivers up to 8,600 lumens.

Hollowcore brings a whole new dimension to the classic high bay shape. It is suitable for both traditional applications or more contemporary spaces such as corporate, retail, educational or hospitality. Hollowcore is designed around a circular LED light engine, enabling an airy, open center concept. It features an aluminum reflector to achieve controlled illumination.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 19"
    L: 19"
    H: 11"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80
  • Watt(Approx)
    32 W50 W73 W94 W112 W
  • Lumens(Approx)
    3032 Lm4456 Lm6092 Lm7477 Lm8523 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%0-10VDMX/RDM
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
