Luminis (Acuity Brands Lighting)

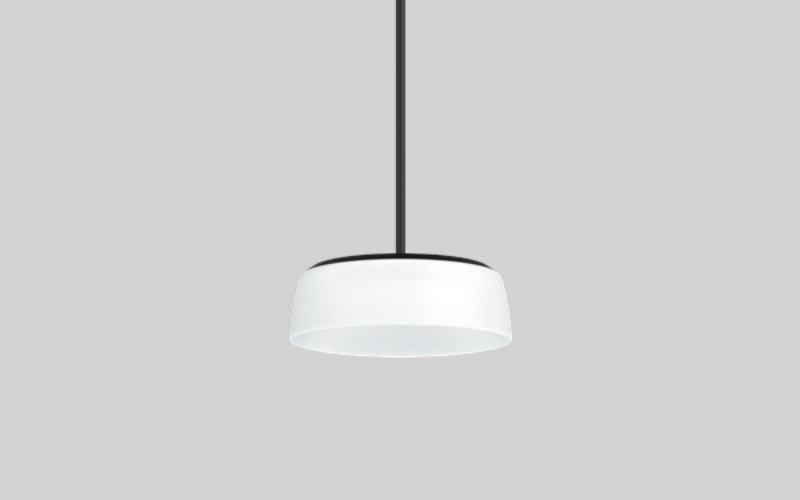

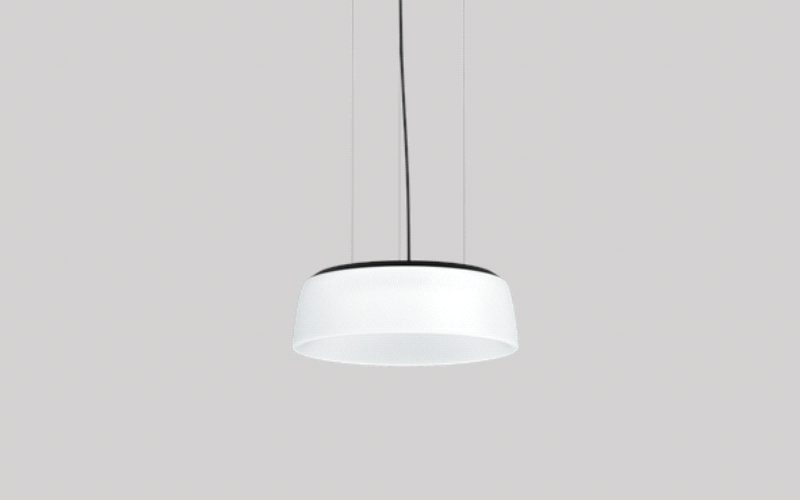

HCE1900. HOLLOWCORE ELEMENT PENDANT.
 Configure
 Add to project
DESCRIPTION
HCE1900 is a Ø19" high power pendant with an attractive hollow center and semi-opaque diffuser lens. It delivers up to 9,800 lumens.
Hollowcore Element draws focus, reinforcing composition and shaping atmosphere with intention. For canopy and ceiling applications, the pendant configuration is designed for on-site flexibility. Available with stem or aircraft cable suspension, both options are field-adjustable. The driver is housed in the canopy for easier access and long-term reliability. At its center, the open core defines the luminaire’s visual identity, bringing depth, lightness, and a sense of clarity to the form while maintaining a clean luminous presence. Light is shaped through a semi-opaque, double-layer lens, creating a soft, wide distribution that feels resolved from every angle. Illumination remains even and controlled, broad enough to define the space, yet comfortable enough to hold attention without distraction.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 19.2”
    L: 19.2”
    H: 7.5”
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
    23 W34 W48 W60 W79 W
  • Lumens(Approx)
    3295 Lm4661 Lm6438 Lm7826 Lm9853 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10V
  • Controls/Network
    nLight®
  • Power/Voltage
    IntegralRemoteUNV 120-277V120V277VUNC 347-480V347V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CUL
  • Environment
    WetNatatoriumMarine
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
