Luminis (Acuity Brands Lighting)
HCE1905. HOLLOWCORE ELEMENT PENDANT.
Configure
Add to project



RESOURCES
DESCRIPTION

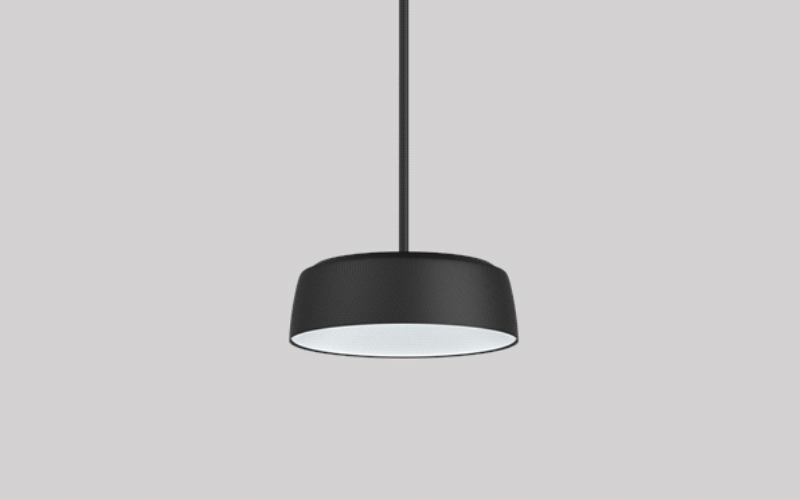

HCE1905 is a Ø19" high power pendant with attractive hollow center and aluminum reflector. It deliver up to 7,600 lumens

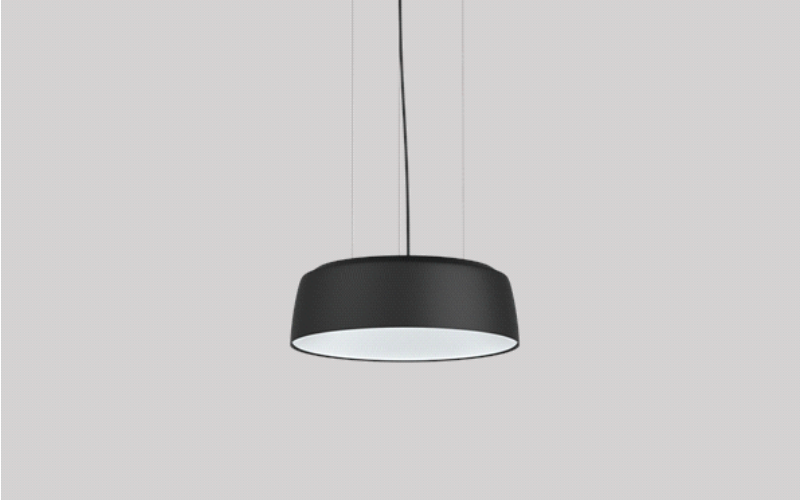

Hollowcore Element draws focus, reinforcing composition and shaping atmosphere with intention. For canopy and ceiling applications, the pendant configuration is designed for on-site flexibility. Available with stem or aircraft cable suspension, both options are field-adjustable. The driver is housed in the canopy for easier access and long-term reliability. At its center, the open core defines the luminaire’s visual identity, bringing depth, lightness, and clarity to the form while maintaining a clean luminous presence. Light is shaped through a semi-opaque, double-layer lens and refined by a spun aluminum shade, directing illumination downward with greater control and precision. The result is a focused distribution that defines the space with clarity, while maintaining a soft, comfortable illumination.
Hollowcore Element draws focus, reinforcing composition and shaping atmosphere with intention. For canopy and ceiling applications, the pendant configuration is designed for on-site flexibility. Available with stem or aircraft cable suspension, both options are field-adjustable. The driver is housed in the canopy for easier access and long-term reliability. At its center, the open core defines the luminaire’s visual identity, bringing depth, lightness, and clarity to the form while maintaining a clean luminous presence. Light is shaped through a semi-opaque, double-layer lens and refined by a spun aluminum shade, directing illumination downward with greater control and precision. The result is a focused distribution that defines the space with clarity, while maintaining a soft, comfortable illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 19.2”L: 19.2”H: 7.5”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)23 W34 W48 W60 W79 W
- Lumens(Approx)2574 Lm3640 Lm5028 Lm6111 Lm7695 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralRemoteUNV 120-277V120V277VUNC 347-480V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentWetNatatoriumMarine
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHCE1905
—
