Luminis (Acuity Brands Lighting)
HCE1910. HOLLOWCORE ELEMENT CEILING.
 Configure
 Add to project
DESCRIPTION

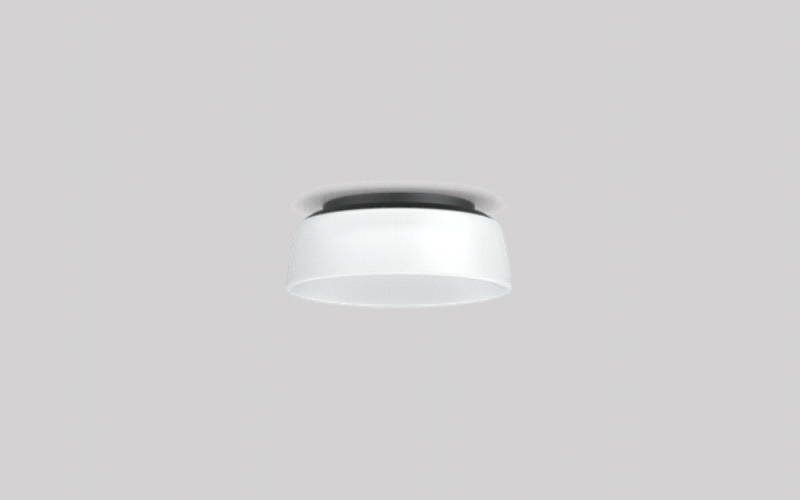

HCE1910 is a Ø19" high power ceiling mount luminaire with a semi-opaque diffuser lens. It delivers up to 9,600 lumens.
Hollowcore Element draws focus, reinforcing composition and shaping atmosphere with intention. For surface-mounted ceilings, the luminaire integrates the driver within the center housing. A white center core enhances efficiency by redirecting light downward, supporting a clean and consistent luminous appearance. Light is shaped through a semi-opaque, double-layer lens, creating a soft, wide distribution that feels resolved from every angle. Illumination remains even and controlled, broad enough to define the space, yet comfortable enough to hold attention without distraction.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 19.2”
    L: 19.2”
    H: 7.3"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
    23 W34 W48 W60 W79 W
  • Lumens(Approx)
    3241 Lm4584 Lm6332 Lm7696 Lm9690 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277VUNC 347-480V347V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CUL
  • Environment
    WetNatatoriumMarine
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
