Luminis (Acuity Brands Lighting)
HCE3005. HOLLOWCORE ELEMENT PENDANT.
Configure
Add to project



RESOURCES
DESCRIPTION

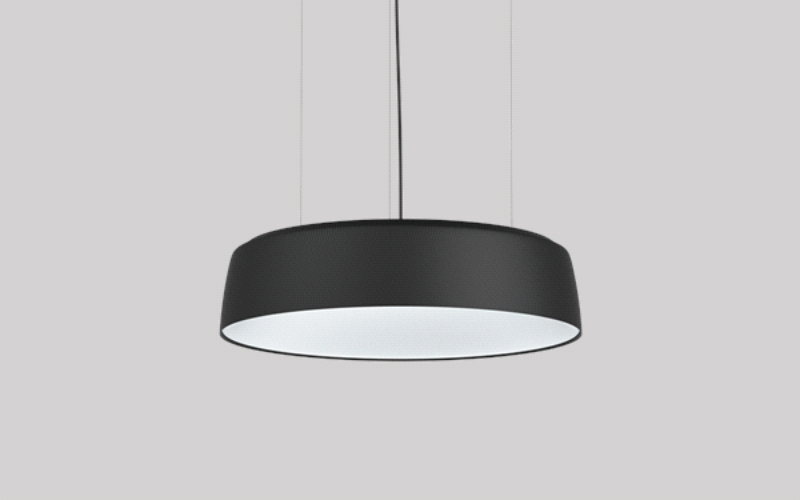

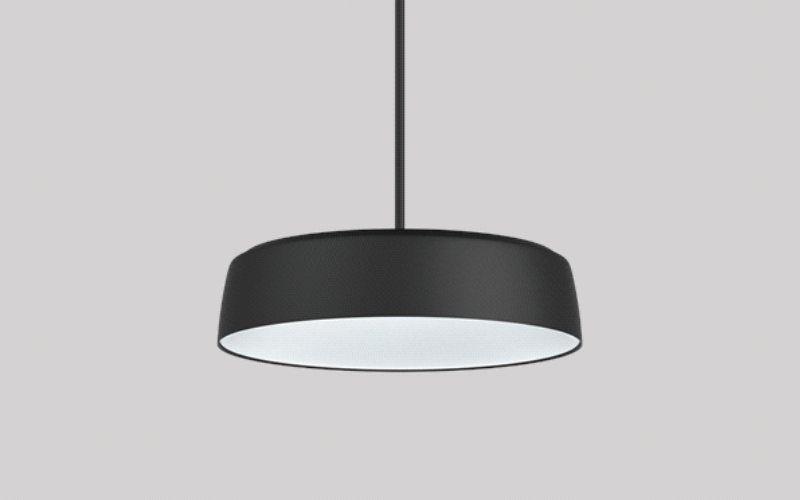

HCE3005 is a Ø30" high power pendant with attractive hollow center and aluminum reflector. It deliver up to 18,700 lumens.
Hollowcore Element draws focus, reinforcing composition and shaping atmosphere with intention. For canopy and ceiling applications, the pendant configuration is designed for on-site flexibility. Available with stem or aircraft cable suspension, both options are field-adjustable. The driver is housed in the canopy for easier access and long-term reliability. At its center, the open core defines the luminaire’s visual identity, bringing depth, lightness, and clarity to the form while maintaining a clean luminous presence. Light is shaped through a semi-opaque, double-layer lens and refined by a spun aluminum shade, directing illumination downward with greater control and precision. The result is a focused distribution that defines the space with clarity, while maintaining a soft, comfortable illumination.
Hollowcore Element draws focus, reinforcing composition and shaping atmosphere with intention. For canopy and ceiling applications, the pendant configuration is designed for on-site flexibility. Available with stem or aircraft cable suspension, both options are field-adjustable. The driver is housed in the canopy for easier access and long-term reliability. At its center, the open core defines the luminaire’s visual identity, bringing depth, lightness, and clarity to the form while maintaining a clean luminous presence. Light is shaped through a semi-opaque, double-layer lens and refined by a spun aluminum shade, directing illumination downward with greater control and precision. The result is a focused distribution that defines the space with clarity, while maintaining a soft, comfortable illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 30.6”L: 30.6”H: 7.5”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)61 W89 W128 W160 W211 W
- Lumens(Approx)6359 Lm8963 Lm12327 Lm14935 Lm18718 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralRemoteUNV 120-277V120V277VUNC 347-480V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentWetNatatoriumMarine
- Mounting TypePendant
- Housing
- Housing Depth
