Luminis (Acuity Brands Lighting)

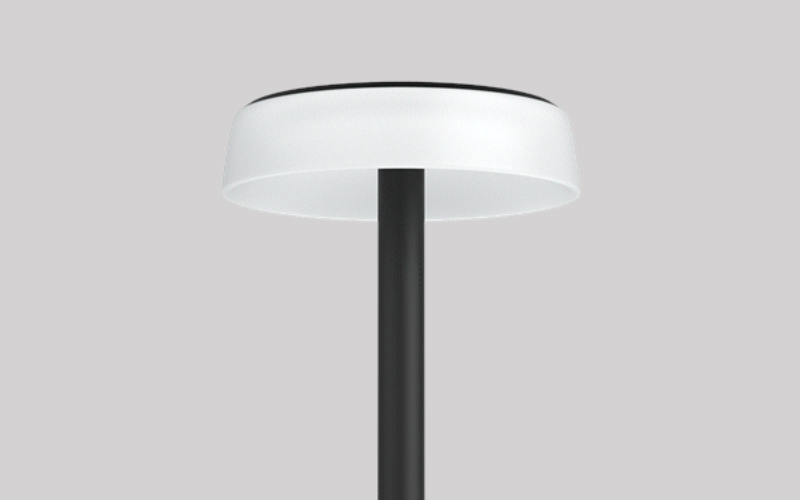

HCE3020. HOLLOWCORE ELEMENT POST TOP.
Configure
Add to project
RESOURCES
DESCRIPTION
HCE3020 is a Ø30" high power pole mount luminaire with a semi-opaque diffuser lens. It delivers up to 26,000 lumens.
For area sites and pedestrian-scale environments, the post top configuration brings Hollowcore Element into the landscape with a clear and composed presence. At its center, the open core defines the luminaire’s visual identity, introducing depth, lightness, and clarity while maintaining a clean, composed profile. The driver is integrated within this central assembly, preserving the purity of the overall design. Light is shaped through a semi-opaque, double-layer lens, creating a soft, wide distribution that gently defines the surrounding environment. Illumination remains even and controlled—broad enough to support site visibility while maintaining a comfortable glow. Designed for Ø4” pole mounting.
For area sites and pedestrian-scale environments, the post top configuration brings Hollowcore Element into the landscape with a clear and composed presence. At its center, the open core defines the luminaire’s visual identity, introducing depth, lightness, and clarity while maintaining a clean, composed profile. The driver is integrated within this central assembly, preserving the purity of the overall design. Light is shaped through a semi-opaque, double-layer lens, creating a soft, wide distribution that gently defines the surrounding environment. Illumination remains even and controlled—broad enough to support site visibility while maintaining a comfortable glow. Designed for Ø4” pole mounting.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 30.6”L: 30.6”H: 7.5”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)61 W89 W128 W160 W211 W
- Lumens(Approx)8833 Lm12450 Lm17123 Lm20745 Lm26000 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralRemoteUNV 120-277V120V277VUNC 347-480V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentWetNatatoriumMarine
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHCE3020
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
