Luminis (Acuity Brands Lighting)

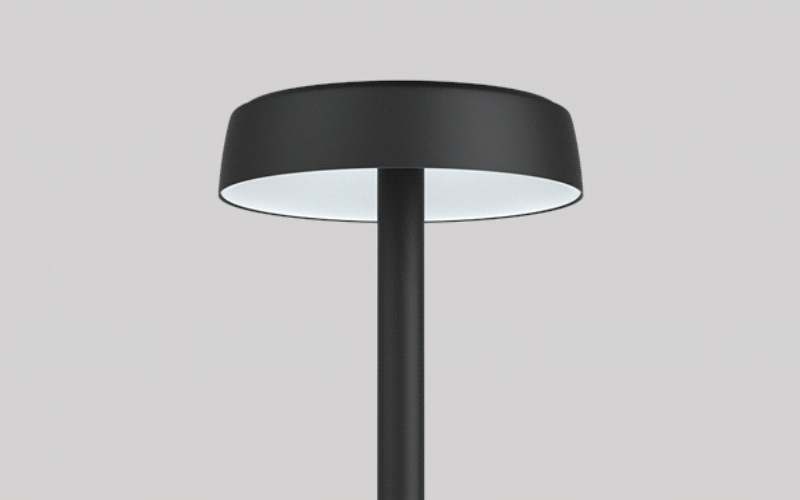

HCE3025. HOLLOWCORE ELEMENT POST TOP.
Configure
Add to project


RESOURCES
DESCRIPTION
HC3025 is a Ø30" high power pole mount luminaire with aluminum reflector. It delivers up to 18,700 lumens.
For area sites and pedestrian-scale environments, the post top configuration brings Hollowcore Element into the landscape with a clear and composed presence. At its center, the open core defines the luminaire’s visual identity introducing depth, lightness, and clarity while maintaining a clean, composed profile. The driver is integrated within this central assembly, preserving the purity of the overall design. Light is shaped through a semi-opaque, double-layer lens and refined by a spun aluminum shade, directing illumination downward with greater control and precision. The result is a more focused distribution that defines the surrounding environment while maintaining a soft, comfortable glow. Designed for Ø4” pole mounting.
For area sites and pedestrian-scale environments, the post top configuration brings Hollowcore Element into the landscape with a clear and composed presence. At its center, the open core defines the luminaire’s visual identity introducing depth, lightness, and clarity while maintaining a clean, composed profile. The driver is integrated within this central assembly, preserving the purity of the overall design. Light is shaped through a semi-opaque, double-layer lens and refined by a spun aluminum shade, directing illumination downward with greater control and precision. The result is a more focused distribution that defines the surrounding environment while maintaining a soft, comfortable glow. Designed for Ø4” pole mounting.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 30.6”L: 30.6”H: 7.5”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)61 W89 W128 W160 W211 W
- Lumens(Approx)6359 Lm8963 Lm12327 Lm14935 Lm18718 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277VUNC 347-480V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentWetNatatoriumMarine
- Mounting TypePole/Post Top
- Housing
- Housing Depth
