Luminis (Acuity Brands Lighting)

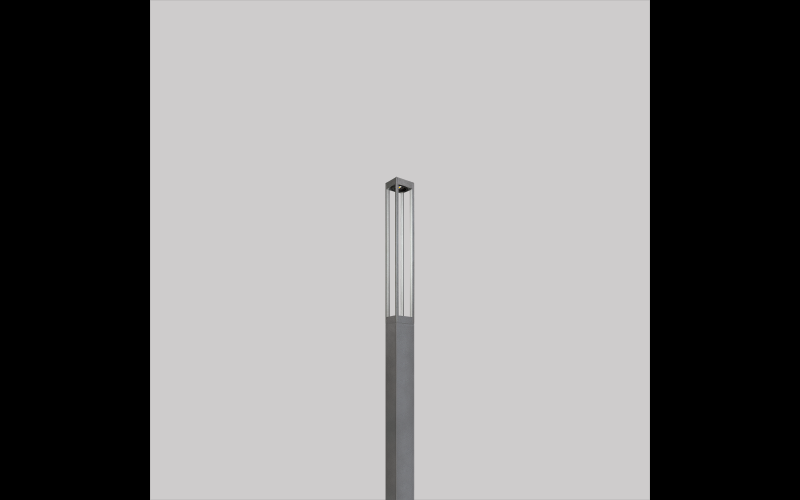

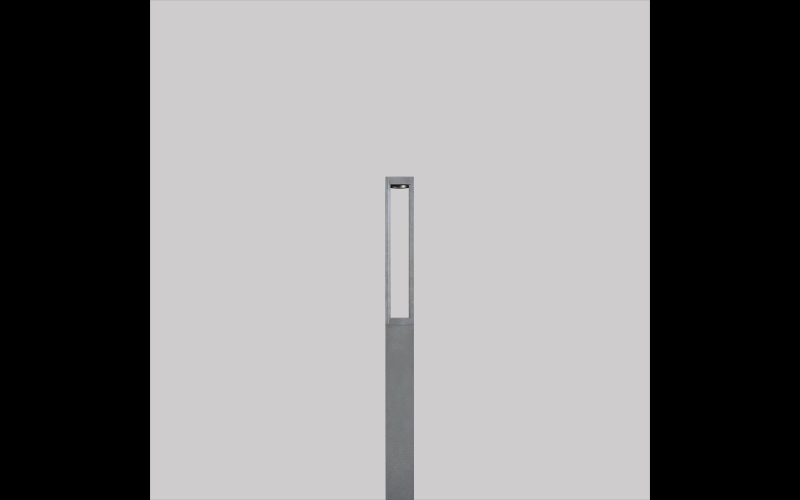

LQ421. Lumiquad 4'' square profile column with extruded aluminum struts.
Configure
Add to project
RESOURCES
DESCRIPTION
LQ421 is a 4" square profile column with extruded aluminum struts and no acrylic diffuser. It delivers up to 3,100 lumens.
Lumiquad 4" x 4" columns offer an edgier look for today's contemporary designs. Available with or without an acrylic diffuser, Lumiquad is designed to illuminate and accent exterior spaces such as pedestrian areas, commercial perimeters, parks and urban environments. Accessories include a decorative shroud, blockout shield or glare control louvers. They are available in Type II or Type V distribution in white or true amber LED. Columns are rated IP65 for exterior wet locations and are DarkSky approved.
Lumiquad 4" x 4" columns offer an edgier look for today's contemporary designs. Available with or without an acrylic diffuser, Lumiquad is designed to illuminate and accent exterior spaces such as pedestrian areas, commercial perimeters, parks and urban environments. Accessories include a decorative shroud, blockout shield or glare control louvers. They are available in Type II or Type V distribution in white or true amber LED. Columns are rated IP65 for exterior wet locations and are DarkSky approved.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 4"H: 28”
- Light SourceLED
- CCT/ColorAmber (WildLife)2700K3000K3500K4000K
- CRI80
- Watt(Approx)14 W12 W31 W51 W
- Lumens(Approx)301 Lm1039 Lm2078 Lm3034 Lm
- OpticsDirectType IIType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULDark Sky
- EnvironmentIP65Marine
- Mounting TypeLight Column
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLQ421
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
