Luminis (Acuity Brands Lighting)

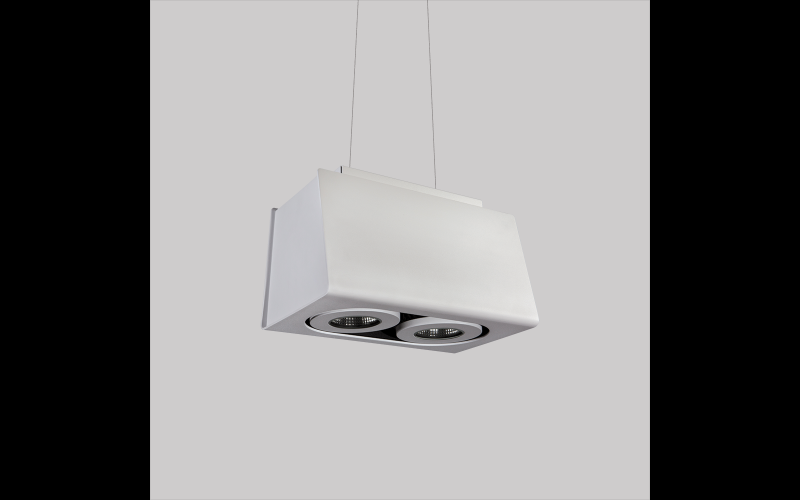

MU120. Multilux 1x2 light module pendant.
Configure
Add to project
RESOURCES
DESCRIPTION
MU120 is a high power 1x2 light module pendant available in stem or cable mount. It delivers up to 8,000 lumens.
Multilux was developed for high ceiling applications such as car dealerships, supermarkets, airport terminals, convention centers, or even natatoriums. A multi-circuit design allows each light module to be independently adjusted and controlled: +/- 30° tilt and 358° degree rotation. Up to 5 configurations available. Static white output with 4 optic distributions: very narrow 9°, narrow 15°, flood 30°, very wide 52°. Suitable for natatorium environments.
Multilux was developed for high ceiling applications such as car dealerships, supermarkets, airport terminals, convention centers, or even natatoriums. A multi-circuit design allows each light module to be independently adjusted and controlled: +/- 30° tilt and 358° degree rotation. Up to 5 configurations available. Static white output with 4 optic distributions: very narrow 9°, narrow 15°, flood 30°, very wide 52°. Suitable for natatorium environments.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.25”L: 14”H: 8.3”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)29 W51 W90 W
- Lumens(Approx)3041 Lm3007 Lm5061 Lm8016 Lm
- OpticsDirectNarrowFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to <1%0-10VDMX/RDM
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277VUNC 347-480V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentDampNatatoriumCorrosion Resistant
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
