Luminis (Acuity Brands Lighting)

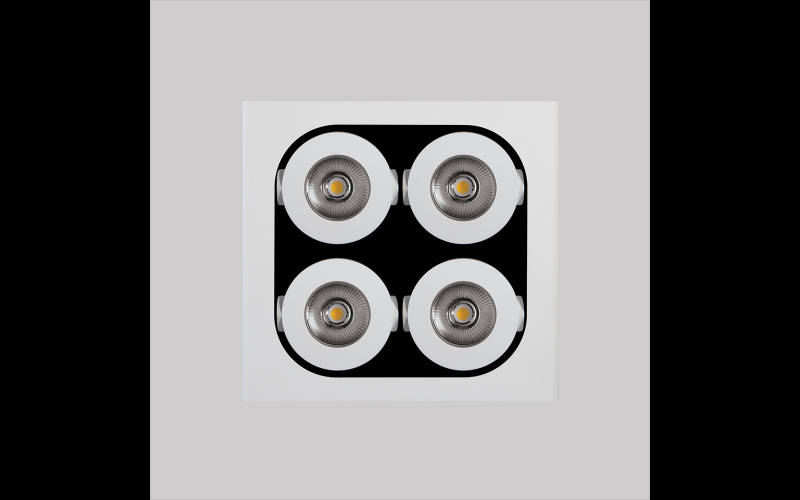

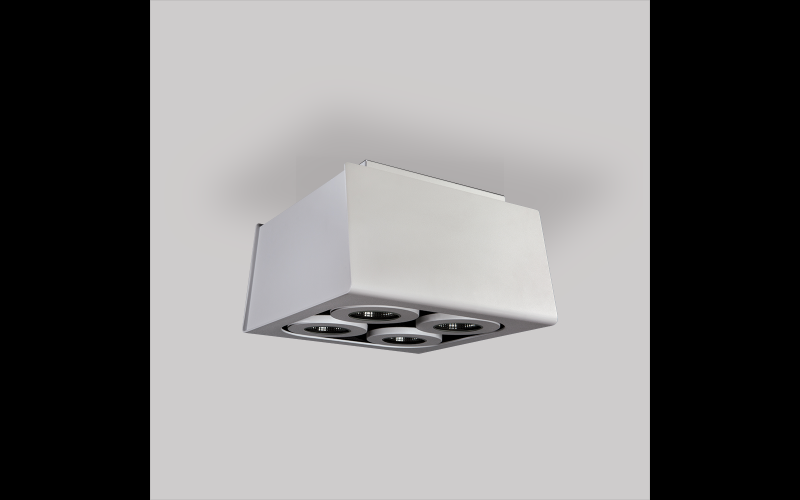

MU225. Multilux 2x2 light module ceiling mount.
Configure
Add to project
RESOURCES
DESCRIPTION
MU225 is a high power 2x2 light module ceiling mount luminaire. It delivers up to 14,200 lumens.
Multilux was developed for high ceiling applications such as car dealerships, supermarkets, airport terminals, convention centers, or even natatoriums. A multi-circuit design allows each light module to be independently adjusted and controlled: +/- 30° tilt and 358° degree rotation. Up to 5 configurations available. Static white output with 4 optic distributions: very narrow 9°, narrow 15°, flood 30°, very wide 52°. Suitable for natatorium environments.
Multilux was developed for high ceiling applications such as car dealerships, supermarkets, airport terminals, convention centers, or even natatoriums. A multi-circuit design allows each light module to be independently adjusted and controlled: +/- 30° tilt and 358° degree rotation. Up to 5 configurations available. Static white output with 4 optic distributions: very narrow 9°, narrow 15°, flood 30°, very wide 52°. Suitable for natatorium environments.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 14”L: 15”H: 8.3”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)58 W102 W153 W
- Lumens(Approx)6083 Lm6014 Lm10121 Lm14152 Lm
- OpticsDirectNarrowFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to <1%0-10VDMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277VUNC 347-480V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentDampNatatoriumCorrosion Resistant
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMU225
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
