Luminis (Acuity Brands Lighting)

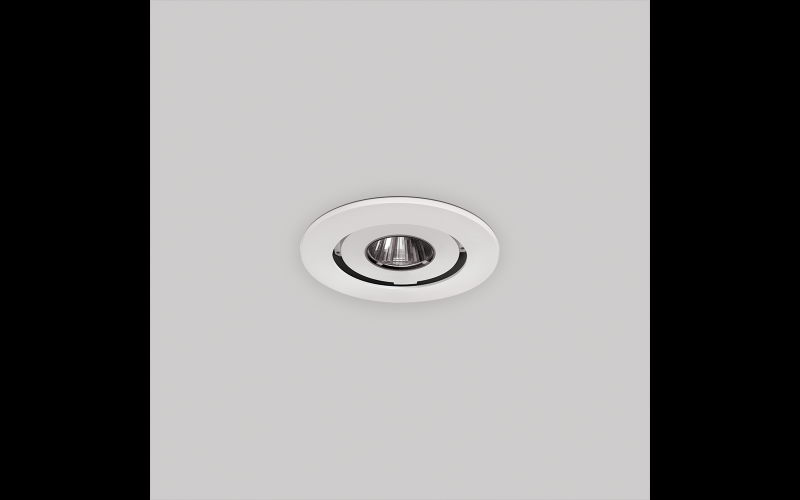

OC750. Oculus Ø6'' recessed downlight luminaire.
 Configure
 Add to project
Luminis. OC750. Oculus Ø6'' recessed downlight luminaire.
Luminis. OC750. Oculus Ø6'' recessed downlight luminaire.
Luminis. OC750. Oculus Ø6'' recessed downlight luminaire.
RESOURCES
DESCRIPTION
OC750 is a Ø6" recessed downlight luminaire. It delivers up to 3,500 lumens.

Oculus is ideally suited for outdoor, under-canopy applications where resistance to weather is crucial. Its 360º rotation allows for precise directional aiming of its light beam. And a unique integral tilting mechanism allows for forward/back adjustability. Available with 9º very narrow, 15º narrow, 30º flood, or 52º wide flood optics. Oculus is rated IP66 for wet locations and is DarkSky approved.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 8.33"
    L: 8.33"
  • Light Source
    LED
  • CCT/Color
    Amber (WildLife)2700K3000K3500K4000K
  • CRI
    80
  • Watt(Approx)
    14 W11 W20 W24 W36 W
  • Lumens(Approx)
    263 Lm1436 Lm1401 Lm1964 Lm3364 Lm
  • Optics
    DirectNarrowFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%Dim to <1%0-10VDMXDMX/RDM
  • Controls/Network
  • Power/Voltage
    IntegralRemoteUNV 120-277V120V277VUNC 347-480V347V480V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CULDark Sky
  • Environment
    IP66NatatoriumMarine
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    New Construction
  • Housing Depth
    5.83 ''
