Luminis (Acuity Brands Lighting)

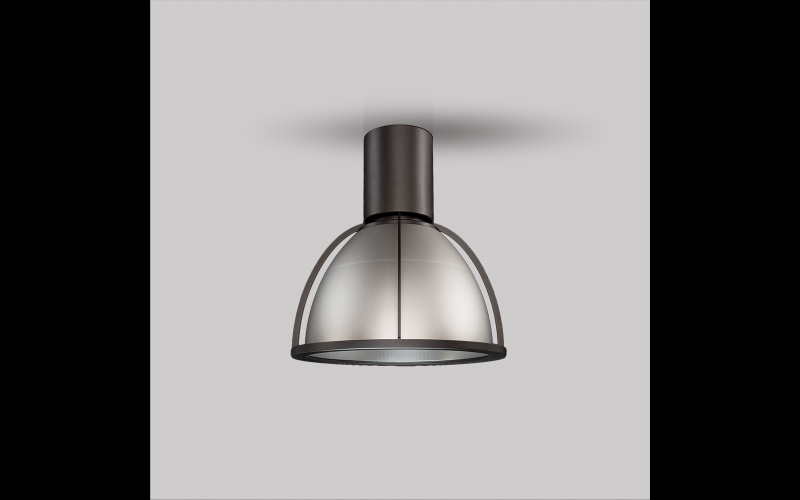

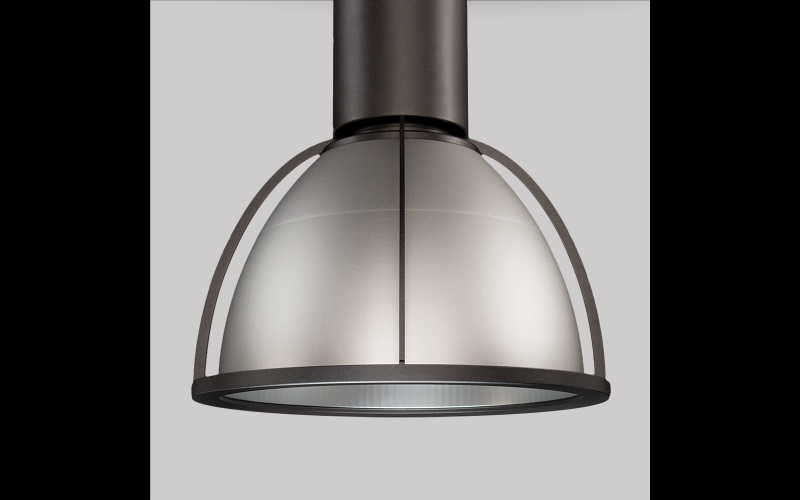

PR1617. Prisma Ø16'' ceiling mount with aluminum reflector and 4 side arms.
Configure
Add to project
RESOURCES
DESCRIPTION
PR1617 is a Ø16" decorative ceiling mount luminaire with aluminum reflector and 4 side arms. It delivers up to 6,100 lumens.
Prisma luminaires feature a diffused prismatic refractor or aluminum reflector, making it a versatile choice for general illumination of offices, retail, schools, or multi-purpose rooms where efficiency, reliability, and aesthetics are paramount.
Prisma luminaires feature a diffused prismatic refractor or aluminum reflector, making it a versatile choice for general illumination of offices, retail, schools, or multi-purpose rooms where efficiency, reliability, and aesthetics are paramount.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16”L: 16”H: 19.8”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)16 W24 W33 W39 W50 W
- Lumens(Approx)2146 Lm3126 Lm4194 Lm4909 Lm6059 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance125000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePR1617
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
