SC650. SCOPO Ø6'' wall mount projector with pivoting arm. by Luminis, Acuity Brands

SC650-S

Lead time Cost —

SPEC SHEET WHERE TO BUY MANUFACTURER'S PAGE

Luminis (Acuity Inc.)

SC650. SCOPO Ø6'' wall mount projector with pivoting arm.
SPECIFICATIONS

CONFIGURATOR

Dimensions
W: 6"
L: 12"
H: 12"
Light Source
LED
CCT/Color
Amber (WildLife)2700K3000K3500K4000K
CRI
80
Watt^(Approx)
15 W11 W26 W31 W48 W
Lumens^(Approx)
263 Lm1599 Lm1690 Lm2543 Lm4102 Lm
Optics
DirectNarrowFlood
Adjustable
Adjustable
Dimming
Dim to 3-10%0-10V
Controls/Network
Power/Voltage
IntegralUNV 120-277V120V277VUNC 347-480V347V480V
Integral Emergency
Lumen Maintenance
60000 h
Certificates
UL/CUL
Environment
IP66NatatoriumMarineCorrosion Resistant
Mounting Type
Wall Surface
Housing
Housing Depth

Description:

DESCRIPTION

DIMENSIONS

LIGHT SOURCE

WATT/LUMENS

POWER/CONTROLS

i You reconfigured the product. To remove this message please update you custom description.

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

CONFIGURATOR

Marks unavailable product configuration, refer to manufacturer’s documentation for details

BUILD CATALOG NUMBER

PRODUCT DESCRIPTION
—

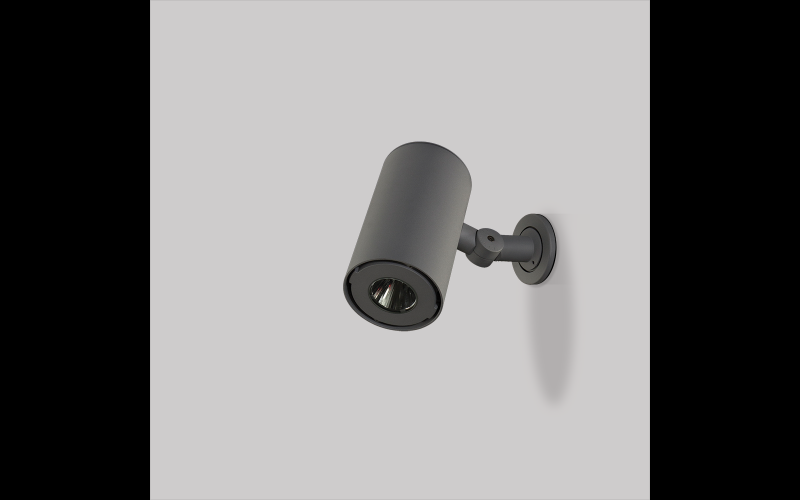

SC650 is a Ø6" wall mount projector luminaire with pivoting arm. It delivers up to 4,100 lumens.

Scopo ground, surface, or pole mount luminaires are ideally suited for outdoor applications where high output and directional aiming are important. Scopo rotates 350° without disturbing the luminaire mounting. The 130° pivoting arm allows forward/back adjustability to aim the light beam in the desired direction. Available with static white or true amber and 3 distributions: very narrow optic 9°, flood optic 29° and wide optic 42°. Rated IP65 for exterior wet locations.
