Luminis (Acuity Brands Lighting)
SN1100. SCENA Ø11'' wall mount with impact resistant glass lens.
Configure
Add to project
RESOURCES
DESCRIPTION

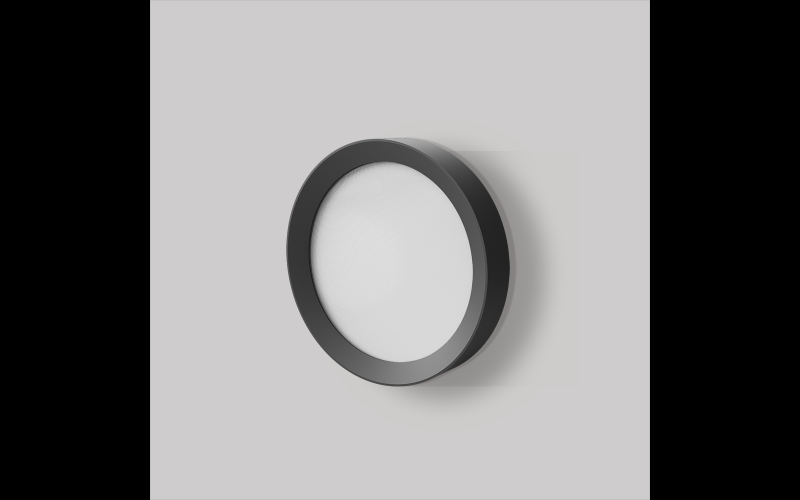

SN1100 is a Ø11" wall mount luminaire with an impact resistant glass lens for general illumination. It delivers up to 3,200 lumens.
Scena brings safety and security to outdoor environments with an architectural appeal. Wall or ceiling mounts, as well as bollards, lend a modern sophistication with luminaires in 2 sizes (8.5" and 11") and 2 geometric forms (round or square). Scena is built with impact resistant patterned tempered glass for enhanced general illumination. Available with optional cross blade louvers. Rated IP65 for exterior wet locations and IK10 to resist impact or vandalism.
Scena brings safety and security to outdoor environments with an architectural appeal. Wall or ceiling mounts, as well as bollards, lend a modern sophistication with luminaires in 2 sizes (8.5" and 11") and 2 geometric forms (round or square). Scena is built with impact resistant patterned tempered glass for enhanced general illumination. Available with optional cross blade louvers. Rated IP65 for exterior wet locations and IK10 to resist impact or vandalism.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.75"L: 11"H: 11"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)14 W29 W37 W
- Lumens(Approx)1288 Lm2523 Lm3201 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULADA
- EnvironmentIP65NatatoriumMarineCorrosion Resistant
- Mounting TypeWall SurfaceConduit Box
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSN1100
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
