Luminis (Acuity Brands Lighting)

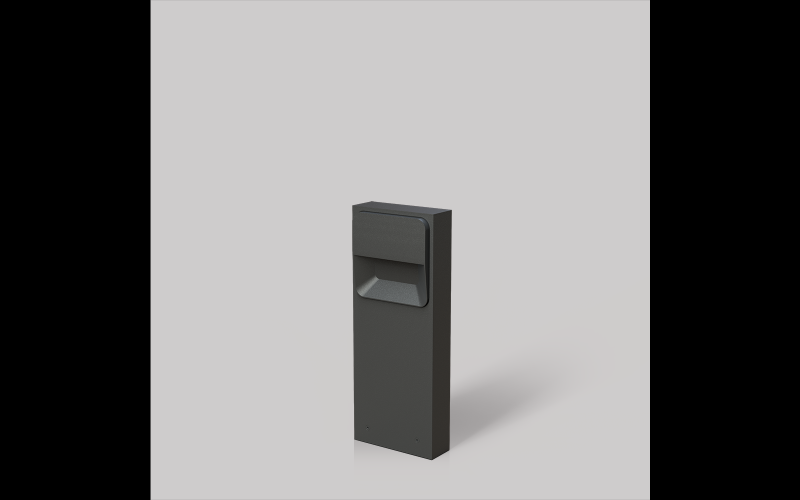

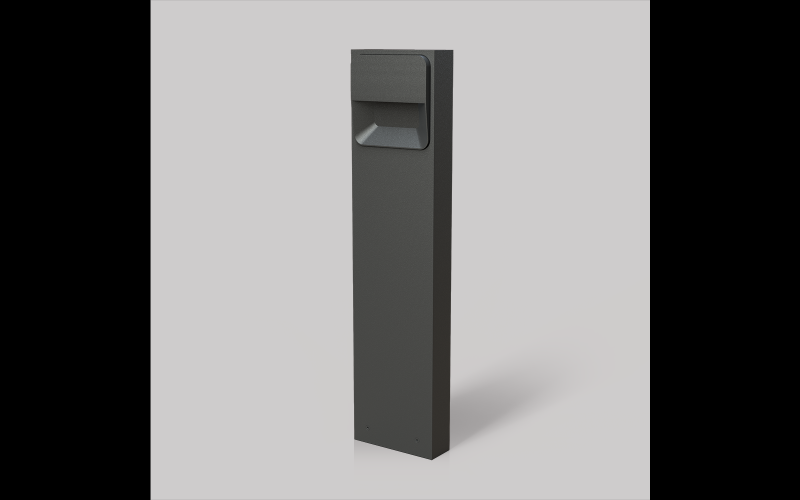

SN825B. SCENA 8.5'' square bollard with eyelid cover.
 Configure
 Add to project
DESCRIPTION
SN825B is a bollard with a 8.5" square luminaire with impact resistant glass lens and eyelid cover for downlight distribution. 800 lumens.

Scena brings safety and security to outdoor environments with an architectural appeal. Wall or ceiling mounts, as well as bollards, lend a modern sophistication with luminaires in 2 sizes (8.5" and 11") and 2 geometric forms (round or square). Scena downlight with eyelid style cover is ideal for areas such as staircases, and is DarkSky approved. Overall bollard heights of 24" or 39". Available with static white or true amber. Rated IP65 for exterior wet locations and IK10 to resist impact or vandalism.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.7"
    L: 9.5"
    H: 24"39”
  • Light Source
    LED
  • CCT/Color
    Amber (WildLife)2700K3000K3500K4000K
  • CRI
    80
  • Watt(Approx)
    7 W12 W19 W
  • Lumens(Approx)
    217 Lm553 Lm817 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%0-10V
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V120V277V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CULDark Sky
  • Environment
    IP65NatatoriumMarineCorrosion Resistant
  • Mounting Type
    Bollard
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
