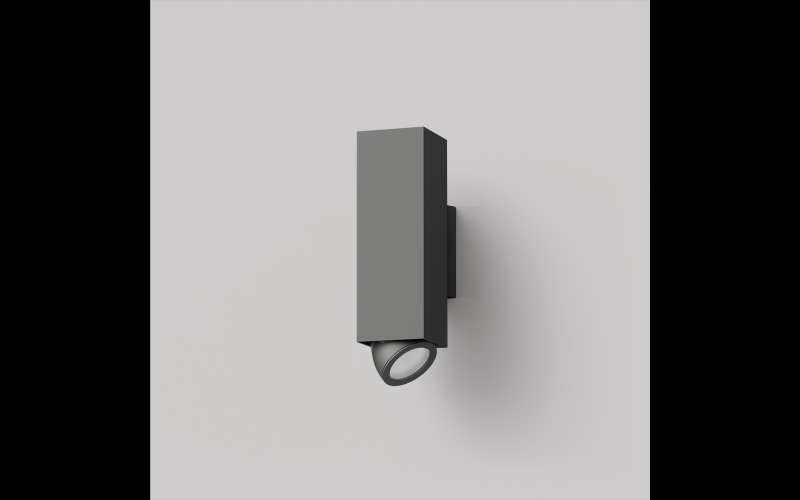

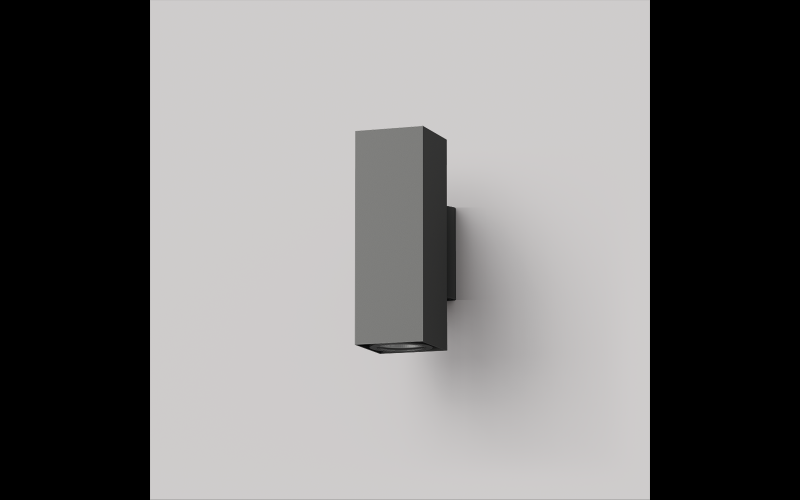

SQP602. SYRIOS PRO 6'' square profile ceiling mount.
Configure
Add to project
RESOURCES
DESCRIPTION
SQP602 is a 6" square profile wall mount luminaire with 30° tilt and 355° rotation for light adjustability. Delivers up to 11,000 lumens.
Syrios Pro has been redesigned with a curb to cube approach, creating a common design aesthetic and project continuity. A pole mount option complements the existing family of wall, ceiling, and pendant (aircraft table or catenary) mounts. Wall and pendant options include up, down, or up/down light. Syrios Pro is offered in two sizes - 4.5” and 6” - and in two forms - round and square. Beam angles include 6°, 15°, 30°, or 55°. Four IES distribution types are available for outdoor use: I, II, III, and V. True amber and RGBW options. Rated IP65 for exterior wet locations.
Syrios Pro has been redesigned with a curb to cube approach, creating a common design aesthetic and project continuity. A pole mount option complements the existing family of wall, ceiling, and pendant (aircraft table or catenary) mounts. Wall and pendant options include up, down, or up/down light. Syrios Pro is offered in two sizes - 4.5” and 6” - and in two forms - round and square. Beam angles include 6°, 15°, 30°, or 55°. Four IES distribution types are available for outdoor use: I, II, III, and V. True amber and RGBW options. Rated IP65 for exterior wet locations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 10.4”H: 18”
- Light SourceLED
- CCT/ColorAmber (WildLife)2700K3000K3500K4000KRGBWYellow/Amber
- CRI80
- Watt(Approx)9 W15 W19 W21 W24 W39 W56 W
- Lumens(Approx)349 Lm562 Lm662 Lm661 Lm2249 Lm2403 Lm3732 Lm4756 Lm4400 Lm5607 Lm
- OpticsDirect/IndirectGrazingNarrowFloodWide FloodType IType IIType IIIType V
- AdjustableAdjustable
- DimmingDim to 1%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentIP65NatatoriumMarineCorrosion Resistant
- Mounting TypeWall Arm/Cantilever
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSQP602
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
