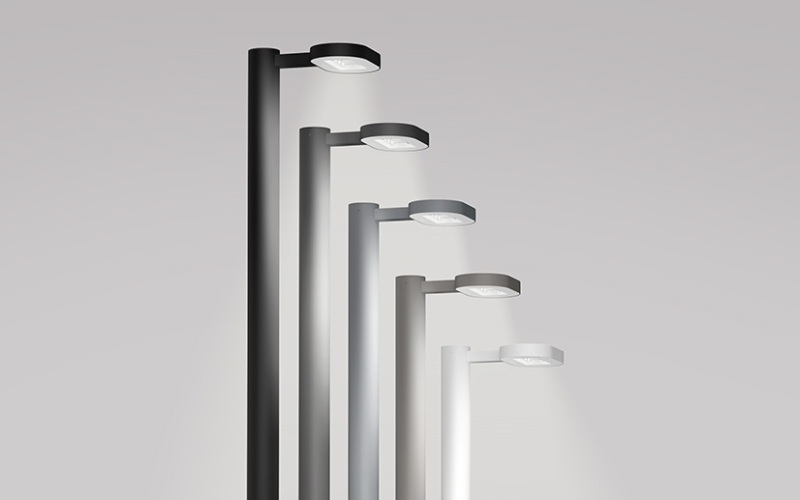

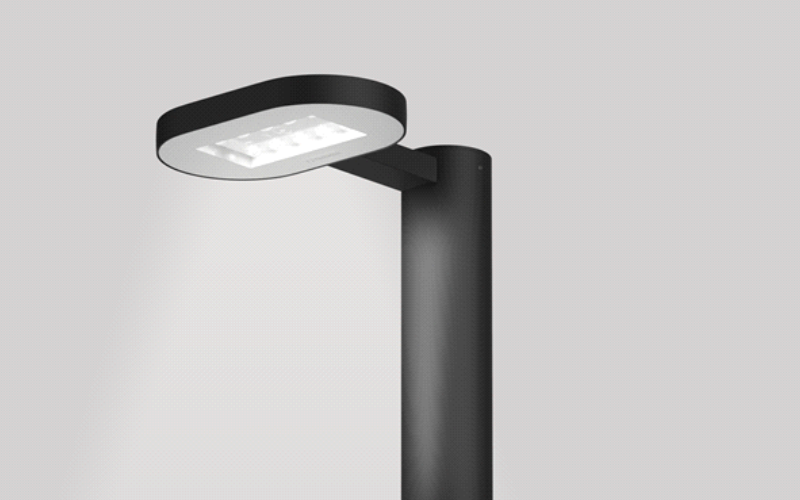

TR900. TRILO POLE MOUNT.
Configure
Add to project




RESOURCES
DESCRIPTION
TR900 is a single head pole mount luminaire delivering up to 5,586 lumens per module, built with a forward-thinking approach.
Trilo embodies the principle of "form follows function," with every element serving a clear purpose. It is the lightest exterior pole-mounted luminaire in our current portfolio, designed with care and precision at every step. From its compact, minimalist form Trilo reflects a thoughtful approach to outdoor lighting. Trilo brings its small scale and slim silhouette to pedestrian areas, offering a blend of innovation and durability. A key attribute is its dedicated Ø3” pole. Over 90% by weight of a single-head fixture with a 13-foot pole is made of aluminum, a material that is generally recyclable. Paired with a newly designed base, the pole achieves an average of 21% reduction in weight and volume compared to our standard 4” diameter poles. Trilo is available in single or twin pole mount, up to 5,586 lumens per module.
Trilo embodies the principle of "form follows function," with every element serving a clear purpose. It is the lightest exterior pole-mounted luminaire in our current portfolio, designed with care and precision at every step. From its compact, minimalist form Trilo reflects a thoughtful approach to outdoor lighting. Trilo brings its small scale and slim silhouette to pedestrian areas, offering a blend of innovation and durability. A key attribute is its dedicated Ø3” pole. Over 90% by weight of a single-head fixture with a 13-foot pole is made of aluminum, a material that is generally recyclable. Paired with a newly designed base, the pole achieves an average of 21% reduction in weight and volume compared to our standard 4” diameter poles. Trilo is available in single or twin pole mount, up to 5,586 lumens per module.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9.5"L: 9"H: 1"
- Light SourceLED
- CCT/ColorAmber (WildLife)2700K3000K3500K4000K
- CRI80
- Watt(Approx)18 W17 W28 W39 W49 W
- Lumens(Approx)219 Lm2391 Lm3469 Lm4480 Lm5432 Lm
- OpticsDirectType IType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentIP65MarineCorrosion Resistant
- Mounting TypePole/Mast Arm
- Housing
- Housing Depth
