Lumenpulse

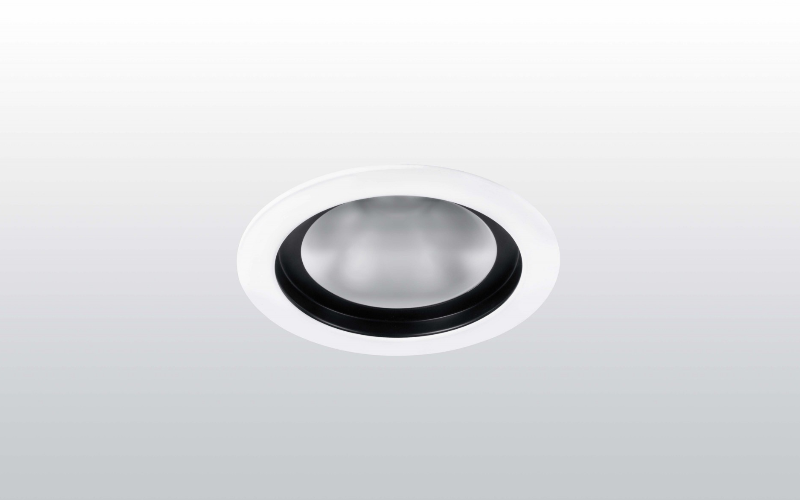

LACL. Lumencore Recessed Clear Large High-performance LED downlight for high-ceiling applications.
 Configure
 Add to project
DESCRIPTION
The Lumencore Recessed Clear Large is a high-performance fixed LED downlight for high-ceiling applications. Delivering up to 6000 lumens, the luminaire is an optimal replacement for metal halide lighting systems. Easy to install with a special "fast fix" mechanism, the luminaire offers a choice of outputs, beam angles, colour rendering options, and accessories, making it ideal for commercial, residential or hospitality environments.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 8 3/16"
    L: 8 3/16"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000KTunable White
  • CRI
    80 90 85 95
  • Watt(Approx)
    12.5 W17 W22 W24 W42 W54 W
  • Lumens(Approx)
    972 Lm1279 Lm1739 Lm2711 Lm3114 Lm4083 Lm4817 Lm6491 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX/RDM
  • Controls/Network
    Lumentalk™
  • Power/Voltage
    Integral120V277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    225000 h
  • Certificates
    UL/CULRoHS
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    New ConstructionICChicago PlenumRemodelIC Air Tight
  • Housing Depth
    7 ''8 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
