Lumenpulse
LACYN. Lumencore Short Cylinder Nano Pendant Remote Compact, High-Performance LED Downlight.
Configure
Add to project
RESOURCES
DESCRIPTION

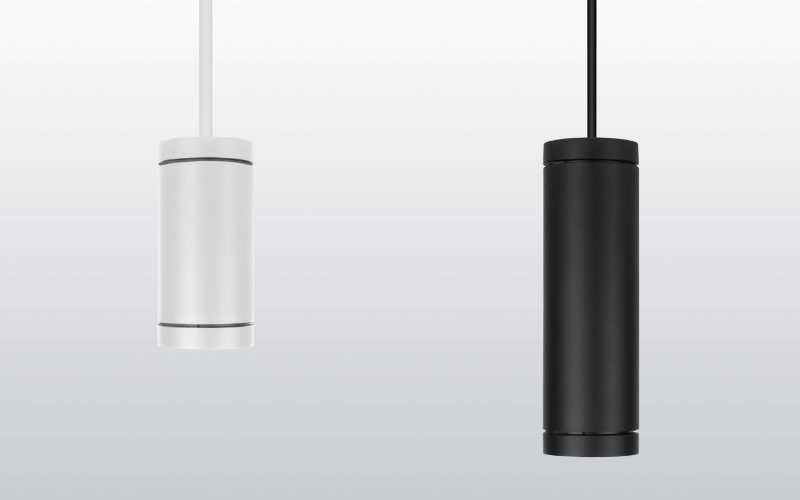

The Lumencore Short Cylinder Nano Pendant Remote is a high-performance LED downlight that is ideal for intimate commercial, residential or hospitality applications and delivers up to 2000 lumens from a 2.75 in diameter. The remote driver can be placed more than 50 ft from the luminaire. Available in lengths of 6 in or 9 in, the Lumencore Short Cylinder Nano Pendant Remote comes in a number of finishes, or can be colour-specified to your taste. Its accessories, beam angles, trims, and optics can easily be changed in the field.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 3/4"L: 2 3/4"H: 6"9"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000KTunable White
- CRI80 90 95
- Watt(Approx)9 W13 W15 W22 W
- Lumens(Approx)973 Lm1285 Lm1752 Lm2726 Lm
- OpticsDirectNarrowMediumFloodWide FloodAsymmetric/WashDouble Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume Premier Eco (PEQ0)DMX/RDM
- Controls/NetworkLumentalk™
- Power/VoltageRemote120V277V347V
- Integral Emergency
- Lumen Maintenance225000 h
- CertificatesUL/CULRoHS
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
