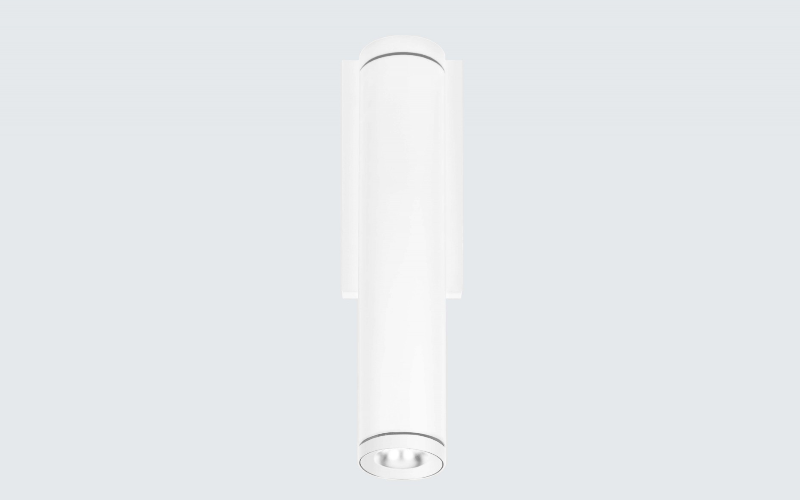

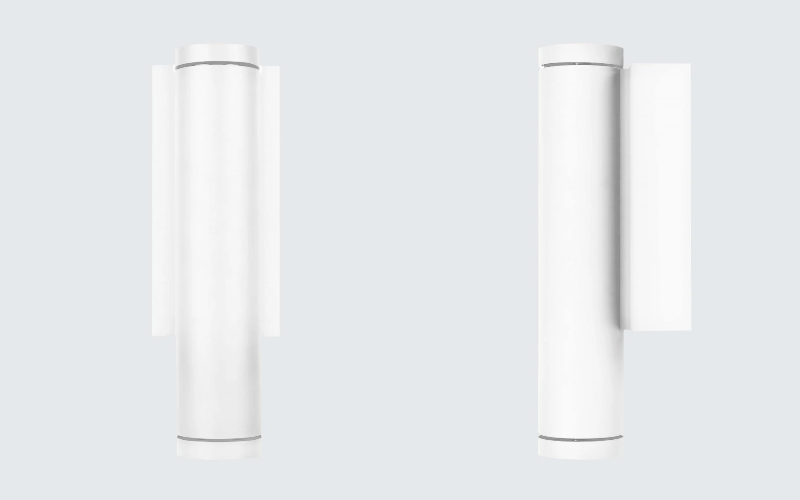

LACYN. Lumencore Cylinders Nano Wall Mount Direct/Indirect.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lumencore Cylinder Nano Wall Mount Direct/Indirect is a high-performance LED luminaire that can simultaneously or individually offer direct and indirect lighting. It is ideal for commercial, residential or hospitality applications and delivers up to 1300 lumens from a 2.75 in diameter. The Lumencore Cylinder Nano Wall Mount Direct/Indirect comes in a number of finishes, or can be colour-specified to fit your taste. Its accessories, beam angles, trims, and optics are easily and quickly changeable in the field.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/2"4 5/8"L: 2 3/4"H: 13"18"23"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000KTunable White
- CRI80 90 95
- Watt(Approx)9 W13 W
- Lumens(Approx)973 Lm1285 Lm1333 Lm
- OpticsDirectIndirectDirect/IndirectNarrowMediumFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX/RDM
- Controls/NetworkLumentalk™
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance225000 h
- CertificatesUL/CULADARoHS
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLACYN-WM-DI
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
