Lumenpulse

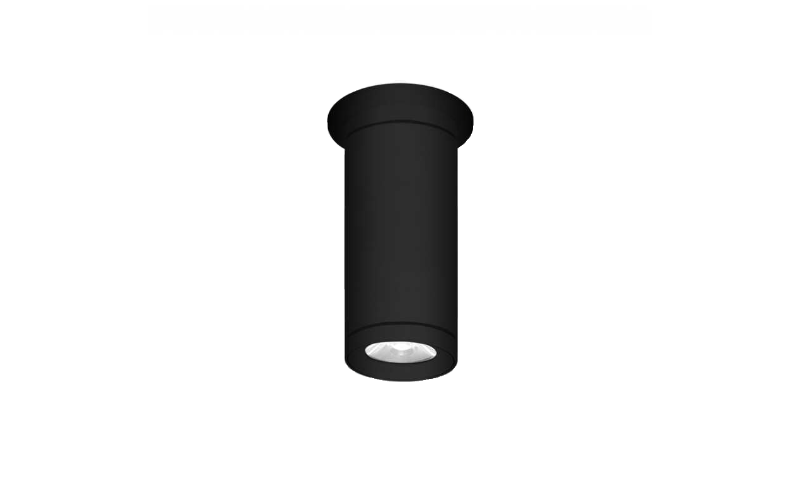

LACYS. Lumencore Short Cylinder Small Surface Mount Integral Compact, High-Performance LED Downlight.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lumencore Short Cylinder Small Surface Mount Integral is a high-performance LED downlight that is ideal for intimate commercial, residential or hospitality applications and delivers up to 2000 lumens from a 102 mm diameter. Available in 229 mm, the Lumencore Short Cylinder Small Surface Mount Integral comes in a number of finishes, or can be colour-specified to your taste. Its accessories, beam angles, trims, and optics can easily be changed in the field.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 4"H: 9"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI80 90 95
- Watt(Approx)6.5 W8 W11 W18 W
- Lumens(Approx)698 Lm921 Lm1256 Lm1953 Lm
- OpticsDirectNarrowMediumFloodWide FloodAsymmetric/WashDouble Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance225000 h
- CertificatesUL/CULRoHS
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLACYS-SMI
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
