Lumenpulse

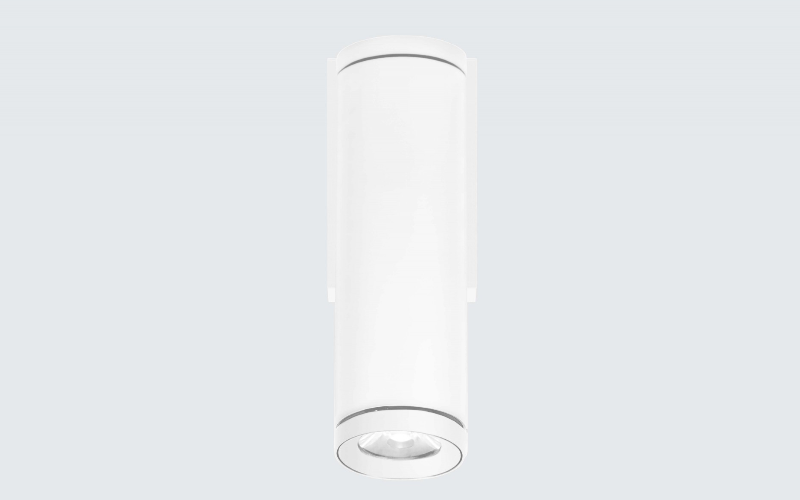

LACYS. Lumencore Cylinder Small Wall Mount High-performance LED with Direct Lighting Capabilities.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lumencore Cylinder Small Wall Mount Direct is a high-performance LED luminaire that is ideal for commercial, residential or hospitality applications and delivers up to 3000 lumens from a 4 in diameter. The Lumencore Cylinder Small Wall Mount Direct comes in a number of finishes, or can be colour-specified to fit your taste. Its accessories, beam angles, trims, and optics are easily and quickly changeable in the field.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 3/4"L: 4"H: 13"18"23"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000KTunable White
- CRI80 90 95
- Watt(Approx)6.5 W8 W11 W18 W
- Lumens(Approx)698 Lm921 Lm1256 Lm1953 Lm3000 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume Premier Eco (PEQ0)DMX/RDM
- Controls/NetworkLumentalk™
- Power/VoltageIntegral120V277V347V
- Integral Emergency
- Lumen Maintenance225000 h
- CertificatesUL/CULRoHS
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
