Lumenpulse
LADDNIO. Lumencore Recessed Nio Decorative.
Configure
Add to project
RESOURCES
DESCRIPTION

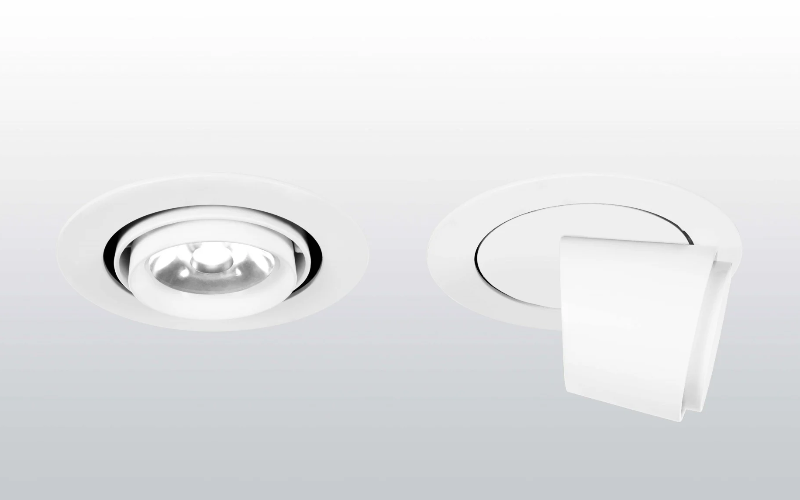

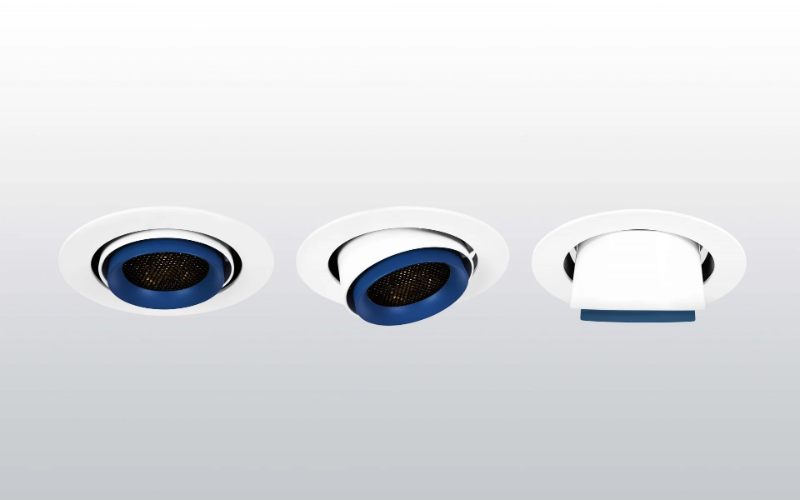

The Lumencore Recessed Nio Decorative is a LED downlight projector that can be tilted up to 105°. Accessories can be changed in the field. Multiple colour options/finishes for both the fixture and the inner bezel allow the fixture to blend in or add a highlight of colour to any application. Optical options include Extra Narrow Spot (XN 5°) and Very Narrow Spot (VN 10°).
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6 9/16"L: 6 9/16"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000KTunable White
- CRI80 90 95
- Watt(Approx)12.5 W17 W21 W24 W43 W
- Lumens(Approx)837 Lm1105 Lm1507 Lm2344 Lm3166 Lm4146 Lm4892 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume Eco (PEQ1)DMX/RDM
- Controls/NetworkLumentalk™
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance225000 h
- CertificatesUL/CULRoHS
- Environment
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionICChicago PlenumRemodel
- Housing Depth7 ''8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLADDNIO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
