LBIL. Lumenbeam Inground Large DYNAMIC WHITE.
Configure
Add to project
RESOURCES
DESCRIPTION

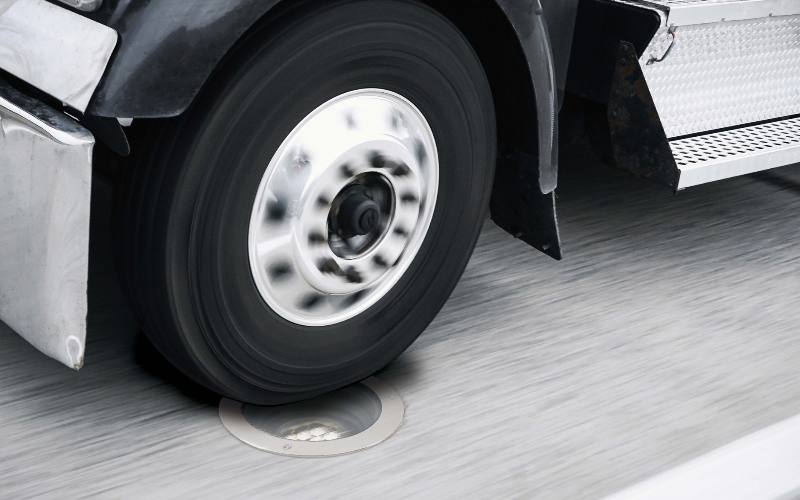

The Lumenbeam Inground Large Dynamic White is a highperformance, ground-recessed LED projector with a feature that enables the selection of any colour temperature from 2200K to 3000K or from 2700K to 6500K. Designed to solve a range of inground lighting challenges with a choice of optics, lenses, trim, and control options, the plug and play design simplifies installation, protecting the system from water infiltration and ensuring long-lasting performance. Built with robust, high-quality materials that are resistant to harsh environments, the Lumenbeam Inground Large delivers L70 LED lifetimes up to 79,000 hours, has a Drive-Over rating of 5000kg, IK10 glass lens and an IP68 factory-sealed optical chamber.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9 15/16"11 1/8"L: 9 15/16"11 1/8"
- Light SourceLED
- CCT/Color3000K Dim to WarmTunable White
- CRI
- Watt(Approx)35 W
- Lumens(Approx)1602 Lm
- OpticsDirectGrazingNarrowMediumFloodWide FloodAsymmetric/WashDirect View
- AdjustableAdjustable
- DimmingDim to 3-10%0-10VDALIDMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V220-240V
- Integral Emergency
- Lumen Maintenance79000 h
- CertificatesUL/CULCERoHS
- EnvironmentIP68
- Mounting TypeIn-GradeConcreteConcrete Drive OverStone/TileGround
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLBIL-DW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
