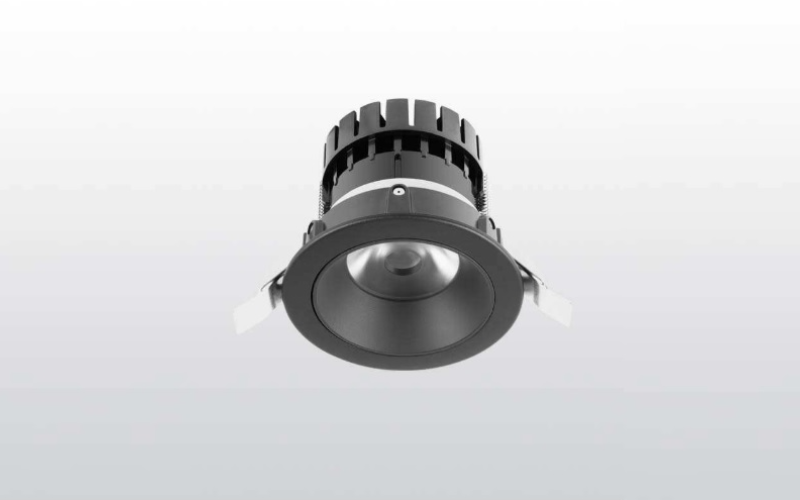

LCRN. Lumencore Recessed Nano Downlight High-performance LED downlight for ceiling applications.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lumencore Recessed Nano Downlight is a high-performance LED downlight for ceiling applications. Available in an array of trims and finishes, outputs, optics, colour renderings, accessories, and a WET IP54 option, these luminaires are here to outperform. The Lumencore Recessed Nano Downlight possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 3/4"2 7/8"L: 3 3/4"2 7/8"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000KTunable White
- CRI80 90 95
- Watt(Approx)15 W18 W24 W30 W
- Lumens(Approx)736 Lm1051 Lm1366 Lm2018 Lm2868 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume Premier Eco (PEQ0)DMX/RDM
- Controls/NetworkLumentalk™
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance225000 h
- CertificatesUL/CULEnergy Star*RoHS
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingNew ConstructionICChicago PlenumRemodelRemodel IC
- Housing Depth6 ''8 ''7 ''12 ''9 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
