Lumenpulse
LCRS. Lumencore Recessed Small Adjustable.
Configure
Add to project
RESOURCES
DESCRIPTION

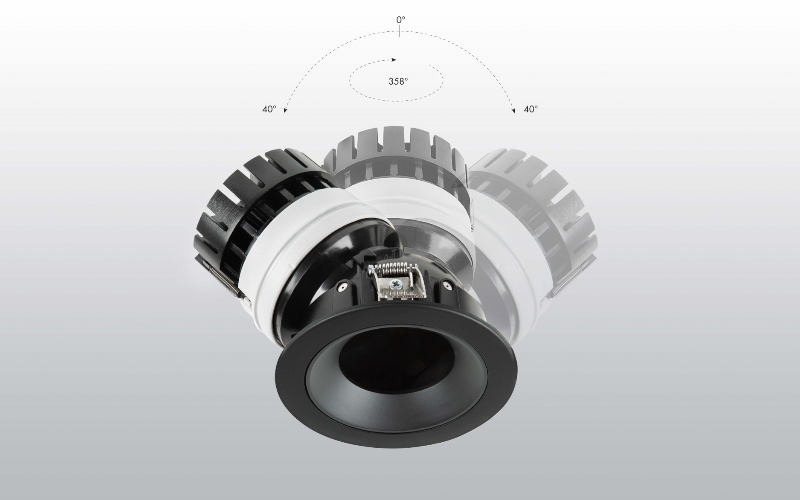

The Lumencore Recessed Small Adjustable is a high-performance LED downlight for ceiling applications that can be rotated from 0°-358° and tilted 0°-40°. Available in an array of trims and finishes, outputs (up to 5000lm), optics, colour renderings, and accessories, these luminaires are here to outperform. The Lumencore Recessed Small Adjustable possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 15/16"L: 4 15/16"
- Light SourceLED
- CCT/Color3000K3500K
- CRI80 90
- Watt(Approx)15 W16 W24 W
- Lumens(Approx)661 Lm909 Lm1404 Lm
- OpticsDirectMediumFlood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance225000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionRemodel
- Housing Depth6 ''8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLCRS-D-SA_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
