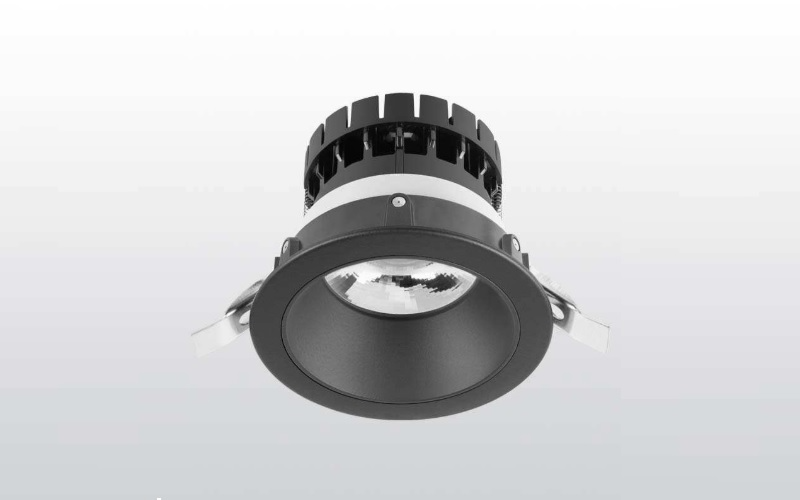

LCRS. Lumencore Recessed Small Downlight High-performance LED downlight for ceiling applications.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lumencore Recessed Small Downlight is a high-performance LED downlight for ceiling applications. Available in an array of trims and finishes, outputs (up to 5000lm), optics, colour renderings, accessories, and a WET IP54 option, these luminaires are here to outperform. The Lumencore Recessed Small Downlight possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 15/16"L: 4 15/16"
- Light SourceLED
- CCT/Color3000K3500K
- CRI80 90
- Watt(Approx)15 W16 W24 W
- Lumens(Approx)892 Lm1238 Lm1929 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance225000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionRemodel
- Housing Depth4 ''6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLCRS-D-SD_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
