Lumenpulse

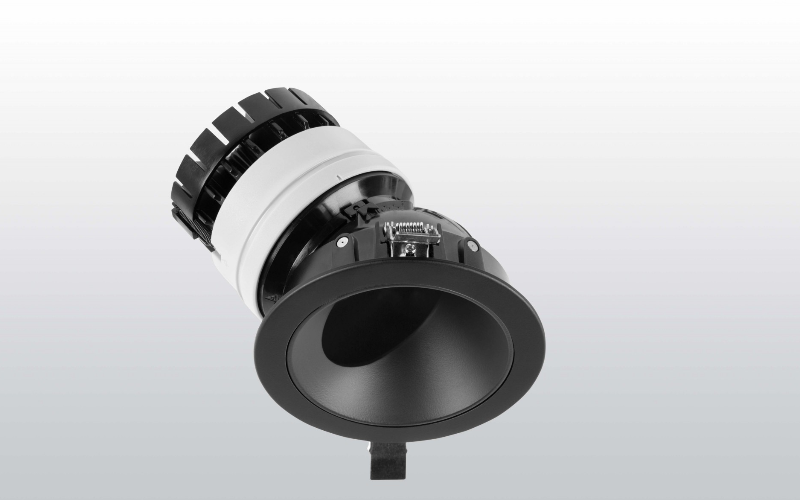

LCRS. Lumencore Recessed Small Tilt.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lumencore Recessed Small Tilt is a high-performance LED downlight for ceiling applications. Available in an array of trims and finishes, outputs (up to 5000lm), optics, colour renderings, and accessories, these luminaires are here to outperform. The Lumencore Recessed Small Tilt possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 15/16"3 3/4"L: 4 15/16"3 3/4"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000KTunable White
- CRI80 90 95
- Watt(Approx)12 W16 W21 W24 W42 W
- Lumens(Approx)642 Lm844 Lm1150 Lm1711 Lm2213 Lm2773 Lm5000 Lm
- OpticsDirectNarrowMediumFlood
- AdjustablePre Aimed
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume Premier Eco (PEQ0)Lutron Hi-lume Eco (PEQ1)DMX/RDM
- Controls/NetworkLumentalk™Lutron®nLight®
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance225000 h
- CertificatesUL/CULRoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingNew ConstructionICChicago PlenumRemodelRemodel IC
- Housing Depth6 ''7 ''8 ''9 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLCRS-D-SFT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
