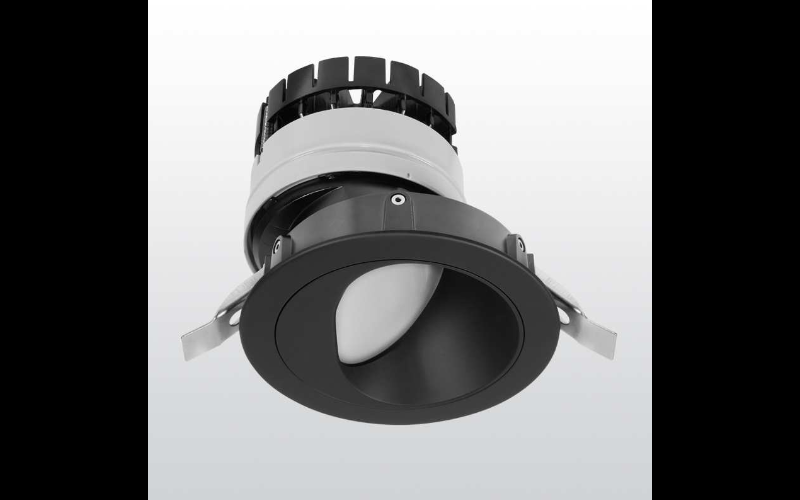

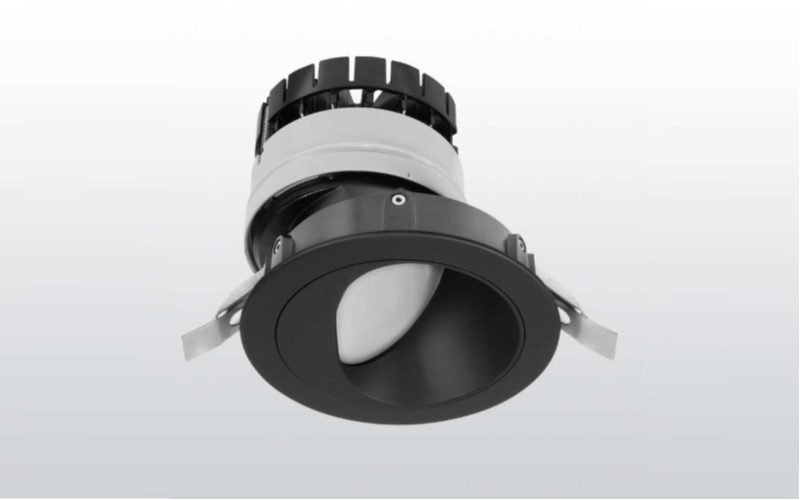

LCRS. Lumencore Recessed Small Wallwash High-performance LED downlight for ceiling applications.
Configure
Add to project
RESOURCES
DESCRIPTION

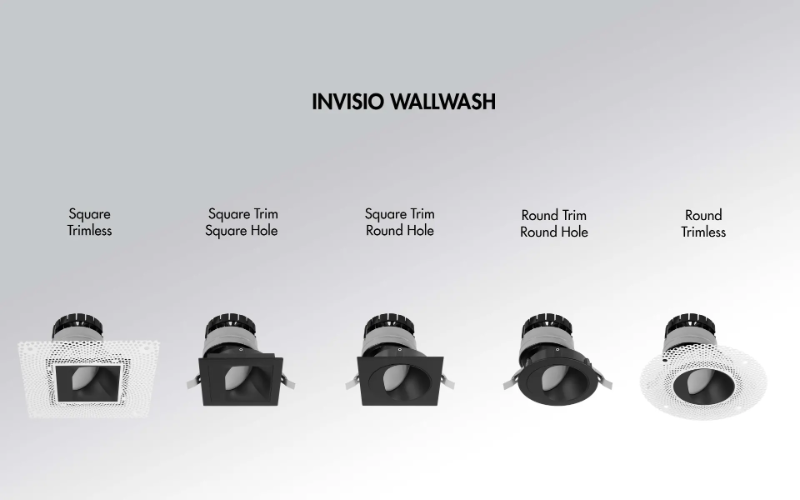

The Lumencore Recessed Small Wallwash is a high-performance LED downlight for wallwash applications. Available in an array of trims and finishes, outputs, colour and renderings, these luminaires are here to outperform. The Lumencore Recessed Small Wallwash possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 15/16"3 3/4"L: 4 15/16"3 3/4"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI80 90 95
- Watt(Approx)11 W15 W16 W24 W
- Lumens(Approx)534 Lm762 Lm991 Lm1245 Lm
- OpticsDirectAsymmetric/WashDouble Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume Premier Eco (PEQ0)DMX/RDM
- Controls/NetworkLumentalk™Lutron®nLight®
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance225000 h
- CertificatesUL/CULRoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingNew ConstructionICChicago PlenumRemodelRemodel IC
- Housing Depth6 ''8 ''7 ''9 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLCRS-D-SW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
