Lumenpulse

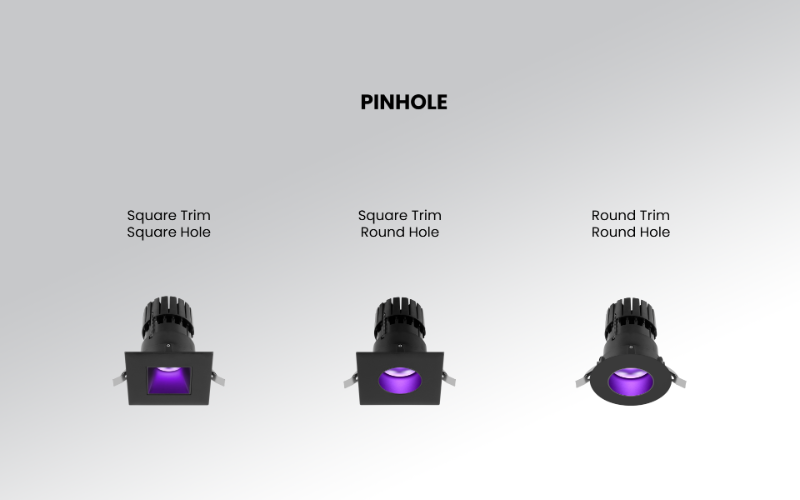

LCRS. Lumencore Recessed Opticolor+ Small Pinhole.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lumencore Recessed Opticolor+ Small Pinhole is a high-performance, colour-changing interior LED luminaire. This versatile three-in-one fixture offers Dynamic RGBW Colours, Dynamic White with Dim-to-Warm, and Premium Static White, all while upholding Lumenpulse's renowned quality of light and precision.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 15/16"L: 4 15/16"
- Light SourceLED
- CCT/ColorTunable White & Colors
- CRI90
- Watt(Approx)13 W18 W25 W34 W
- Lumens(Approx)404 Lm652 Lm898 Lm1185 Lm

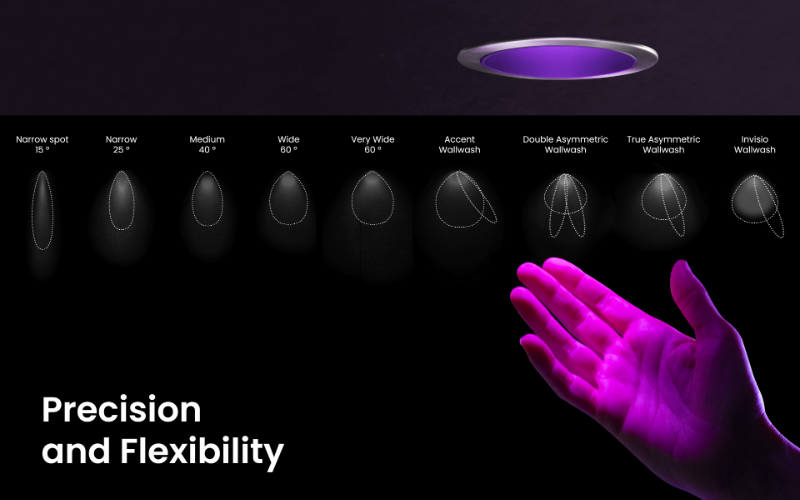

- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%DMX/RDM
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULRoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionICChicago PlenumRemodel
- Housing Depth5 1/16 ''6 3/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLCRS-P-MRGBWP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
