Lumenpulse

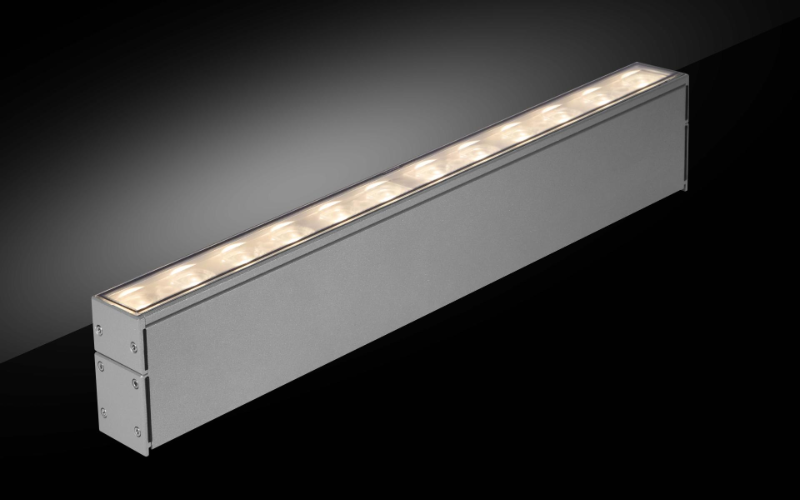

LFM-SA. Lumenfacade Max Standalone WHITE AND STATIC COLORS.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lumenfacade Max Standalone supplies you with beautiful, clean white light and static colour through our in-house designed optics that can compliment the Lumenfacade Pure while supplying extra features and higher output.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 3/16"L: 11 15/16"23 15/16"35 15/1647 15/16H: 4 1/8"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000KYellow/AmberRedGreenBlue
- CRI80
- Watt(Approx)6 W/Ft10 W/Ft17 W/Ft
- Lumens(Approx)704 Lm/Ft1240 Lm/Ft2059 Lm/Ft
- OpticsDirectGrazingNarrowFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to <1%Non-Dim0-10VDALIDMX/RDM
- Controls/NetworkLumentalk™
- Power/VoltageIntegralUNV 120-277V220-240V
- Integral Emergency
- Lumen Maintenance60000 h90000 h
- CertificatesUL/CULCERoHSBAA
- EnvironmentIP66Corrosion Resistant
- Mounting TypePendantWall SurfaceWall Arm/CantileverGround Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLFM-SA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
