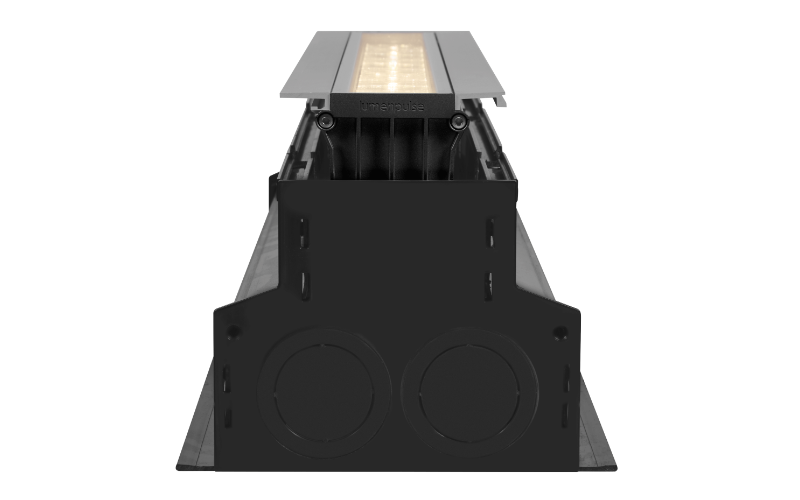

Linear Ground-Recessed Dynamic White Lighting

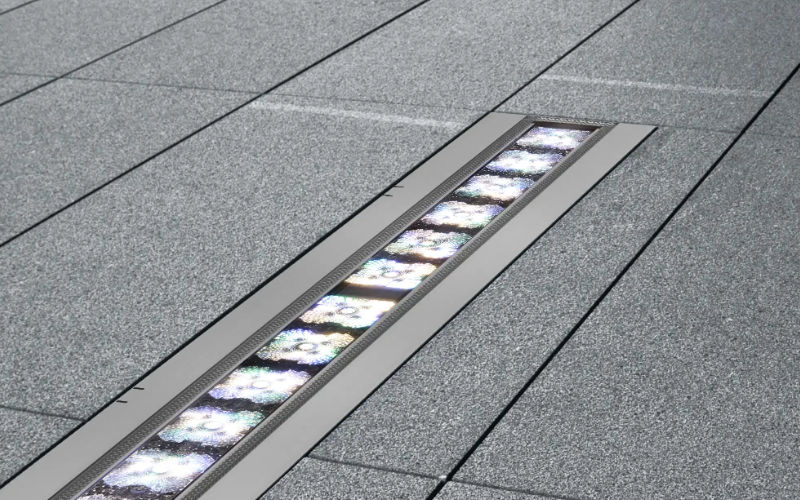

Lumenfacade Max Inground Dynamic White is a linear luminaire designed for bold architectural wall washing, grazing, and linear wayfinding.
Available in multiple lengths and configurations, it offers a wide range of options, while reinforced housing ensure long-term reliability in demanding exterior environments.
A Natural Extension of the Max Family
Building on the proven performance of Lumenfacade Max, the new inground configuration extends the system's capabilities with the same robust platform, premium optics, and colour consistency designers rely on.
Powered by Opticolor+® technology and supported by Optidrive™ performance, Lumenfacade Max Inground delivers unmatched precision, vibrant colour consistency, and seamless visual harmony across the entire Max product line.
Lumenfacade Max Inground Dynamic White is a linear luminaire designed for bold architectural wall washing, grazing, and linear wayfinding.
Available in multiple lengths and configurations, it offers a wide range of options, while reinforced housing ensure long-term reliability in demanding exterior environments.
A Natural Extension of the Max Family
Building on the proven performance of Lumenfacade Max, the new inground configuration extends the system's capabilities with the same robust platform, premium optics, and colour consistency designers rely on.
Powered by Opticolor+® technology and supported by Optidrive™ performance, Lumenfacade Max Inground delivers unmatched precision, vibrant colour consistency, and seamless visual harmony across the entire Max product line.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8 1/2"L: 13 1/16"25 1/16"37 1/16"49 1/16"H: 5 9/16"
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to Warm3500K Dim to WarmTunable White
- CRI80
- Watt(Approx)6 W/Ft10 W/Ft18 W/Ft
- Lumens(Approx)401 Lm/Ft681 Lm/Ft1266 Lm/Ft

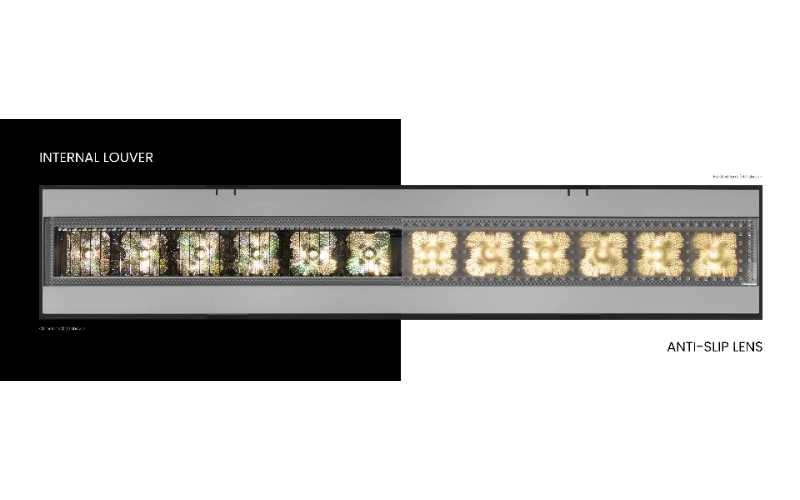

- OpticsDirectGrazingNarrowFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to <1%0-10VDALIDMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V220-240V
- Integral Emergency
- Lumen Maintenance150000 h
- CertificatesUL/CULCERoHSBAA
- EnvironmentIP68
- Mounting TypeIn-Grade
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
