Lumenpulse

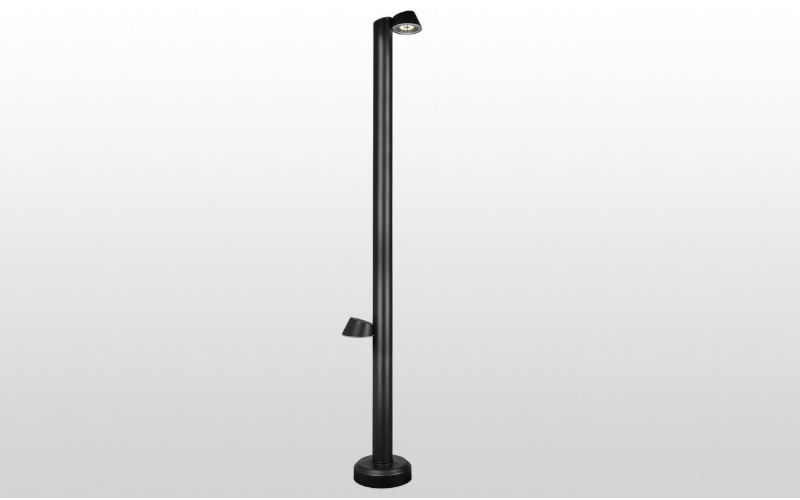

LIC. Lumenicon Column Versatile LED outdoor area.
 Configure
 Add to project
DESCRIPTION
If you want to make a city accessible and proud of its night-scape, the Lumenicon Column is on your side. Capable of carrying a bollard and an overhead, the Column creates a unified aesthetic throughout a number of applications. With its flush, accessibility door, its multiple optic choices, and pulling off two luminations at once, the Lumenicon Column has your city covered
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 8"
    L: 8"
    H: 4 5/16"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3500K4000K5700K
  • CRI
    70 80
  • Watt(Approx)
    11 W23 W32 W
  • Lumens(Approx)
    925 Lm1823 Lm2794 Lm
  • Optics
    DirectType IIType IIIType IVType V
  • Adjustable
  • Dimming
    Dim to 3-10%Non-Dim0-10V
  • Controls/Network
  • Power/Voltage
    Integral120V208V220-240V277V347V480V
  • Integral Emergency
  • Lumen Maintenance
    120000 h
  • Certificates
    UL/CULDark Sky
  • Environment
    IP66
  • Mounting Type
    Pole/Mast Arm
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
