Lumenpulse
LXT. Lumencove XT Exterior cove lighting luminaire.
Configure
Add to project




RESOURCES
DESCRIPTION

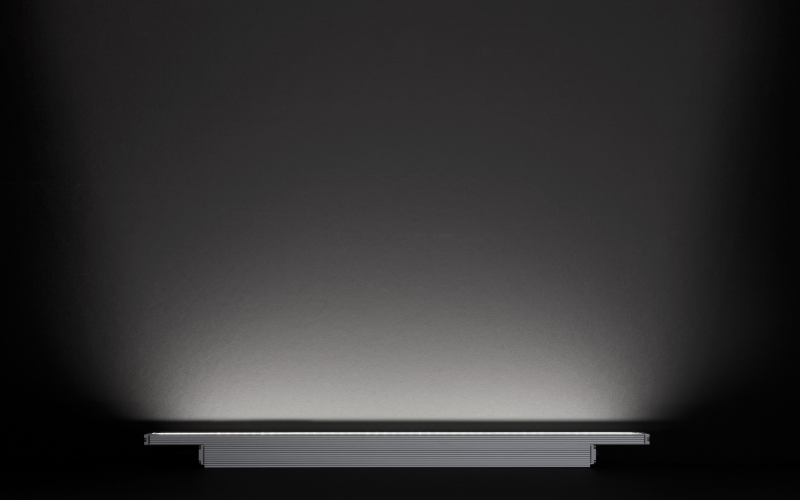

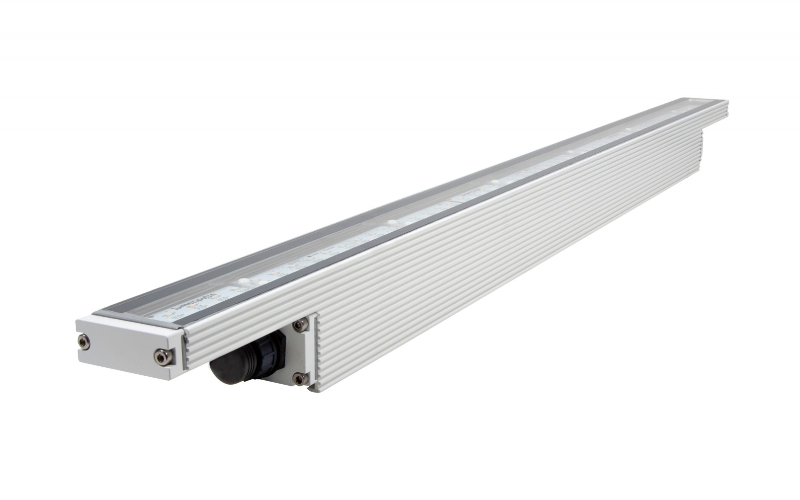

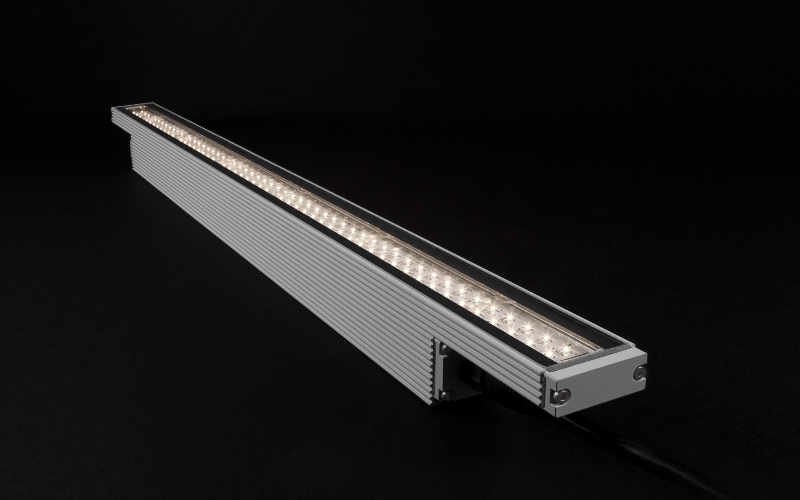

The Lumencove® XT is a slim, IP66-rated LED luminaire for exterior cove lighting and tight space applications. The system offers myriad options: white light in various colour temperatures and outputs, as well as a choice of mounting options and finishes. Built from sturdy aluminium and tempered glass, the Lumencove XT features a standard 16 in cable at input, allowing continuous end-to-end runs without the need for additional jumper cables. The luminaire is available in 12 in, 24 in, 36 in and 48 in sections, enabling both linear and radial layouts.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 3/16"L: 13 3/8"25 3/8"37 3/8"49 3/8"H: 2 1/2"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000KRedGreenBlue
- CRI80
- Watt(Approx)4.75 W/Ft9.75 W/Ft
- Lumens(Approx)516 Lm/Ft1052 Lm/Ft
- OpticsDirectGeneral Diffused
- AdjustableAdjustable
- DimmingDim to 3-10%Non-Dim0-10VDALIDMX/RDM
- Controls/NetworkLumentalk™
- Power/VoltageIntegral120V208V220-240V277V
- Integral Emergency
- Lumen Maintenance126000 h
- CertificatesCERoHS
- EnvironmentIP66Corrosion Resistant
- Mounting TypeWall SurfaceWall Arm/CantileverSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
