Lumiere (Cooper Lighting Solutions)

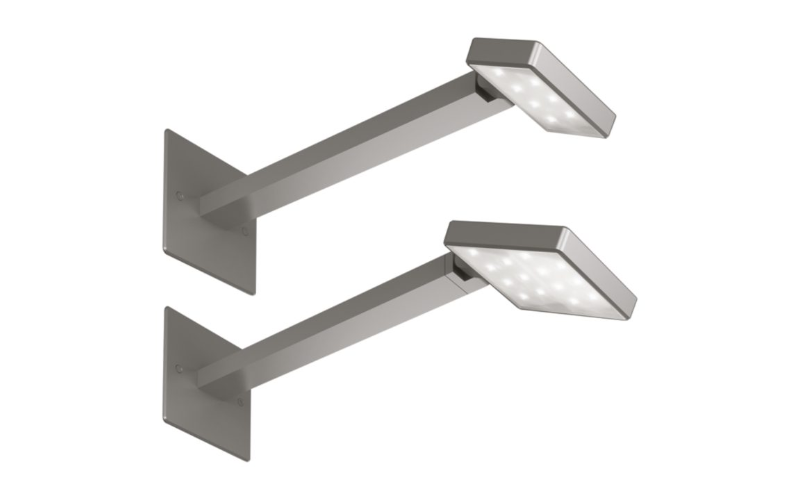

303-S1-LEDB1. EON Wall Mount Sign Light.
 Configure
 Add to project
DESCRIPTION
The Lumiere Eon LED 303-S1 Sign Series of luminaires provides architectural styling with super bright, energy efficient LEDs. The compact, low profile, machined aluminum construction, with a sealed optical compartment and stainless steel hardware make the EON 303-S1 impervious to contaminants. It is available in 8.5W and 15.5W. The Eon sign luminaire is ideal for floodlight illumination of wall mounted signage, building façade architecture or for wall mount applications where greater lateral or forward throw illumination is needed. Can be ceiling and invert mounted for façade/canopy illumination. The luminaire may be used indoors or outdoors and carries and IP66 rating.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4.6"
    L: 12"24"36"
    H: 2.6"
  • Light Source
    LED
  • CCT/Color
    Amber (WildLife)2700K3000K3500K4000K
  • CRI
    90 80
  • Watt(Approx)
    8.5 W6.5 W
  • Lumens(Approx)
    158-649 Lm
  • Optics
    DirectType IIType IVType VArea Forward Throw
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%ELV/Reverse/Trailing0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CULRoHSBAA
  • Environment
    IP66
  • Mounting Type
    Wall Arm/Cantilever
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
