9003. Lanterra CYLINDER FLOOD LIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION

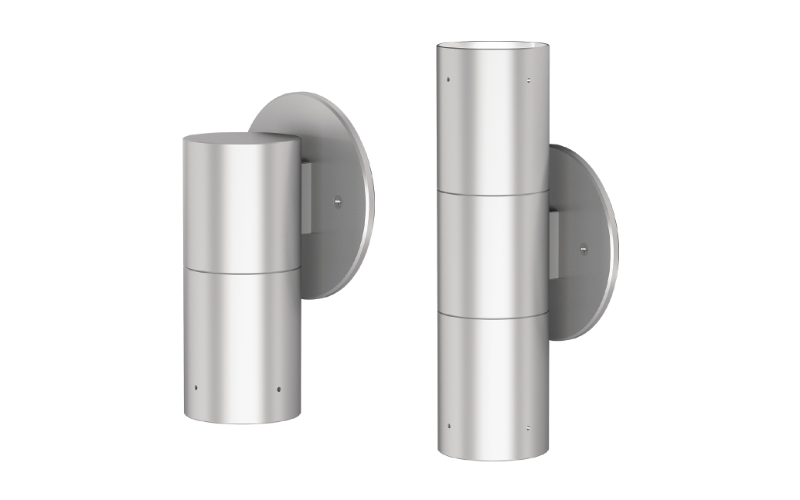

Lanterra 9003-W1 (Up or Down) and 9002-W2 (Up and Down) are 3.25" O.D., line voltage cylinder fixtures with dimmable LED. The luminiare comes in various mountings, surface mount with integral driver in the housing, remote driver mount with round and square wall plates and square wall integral driver, all of which can be mounted over standard 4 inch j-box. The luminaire also comes with various beam optics. It also comes with various lens, louvers and colors or dichroic filters can be combined up to two at once to create multiple lighting effects. The fixture may be used indoors or outdoors and carries IP66 rating
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.22"L: 3.22"H: 7.6"11.7"6.7"9.9"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90 80 97
- Watt(Approx)10 W12 W20 W
- Lumens(Approx)576-1692 Lm
- OpticsDirectIndirectDirect/IndirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULRoHSBAA
- EnvironmentIP66
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
