LED Linear

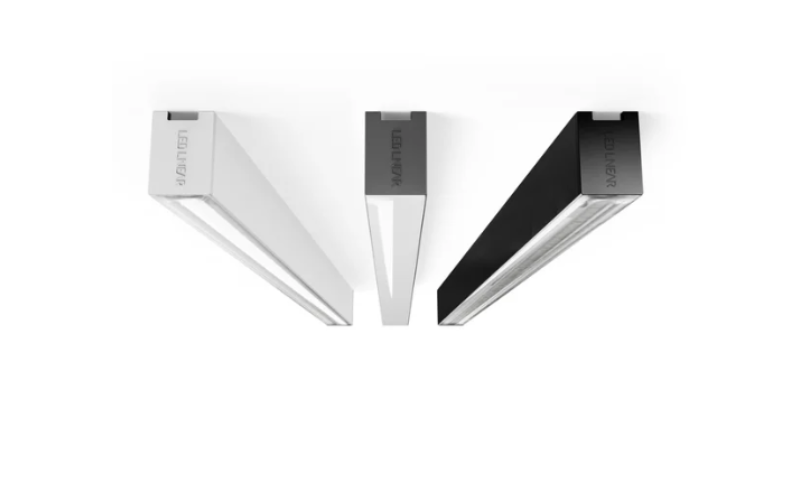

ADONIS. Architectural IP67Tunable White - DarkSky.
Configure
Add to project
RESOURCES
DESCRIPTION
With its powerful light engine within a miniaturized design, the ADONIS ARCHITECTURAL emphasizes the architectural features of building structures. Thanks to its perfect integration, this luminaire is ideal for grazing applications as well as for direct lighting on façades and ceilings.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.8"L: Run length (Ft)H: 1.12"
- Light SourceLED
- CCT/Color3000K Dim to Warm
- CRI84 95
- Watt(Approx)3.65 W/Ft7.31 W/Ft10.97 W/Ft
- Lumens(Approx)200 Lm/Ft362 Lm/Ft416 Lm/Ft739 Lm/Ft566 Lm/Ft1005 Lm/Ft
- OpticsDirectNarrowFloodWide FloodGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Premier Eco (L3D0E)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesDark Sky
- EnvironmentIP67
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeADONIS-TW-DS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
