LED Linear
VarioLED 1512. Recessed Mount- Assembled Fixture.
Configure
Add to project
RESOURCES
DESCRIPTION

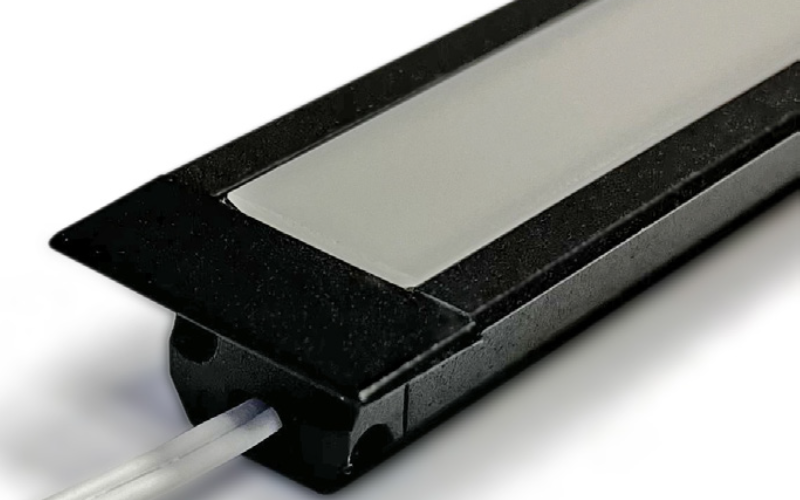

Contour 1512 has been designed for recessed applications with small spaces. With its height of 0.52" (13.4 mm) it fits perfect into dry construction. It has an opal cover and a diffused light output surface. The channels and optics are field cuttable and provide heat sink for LED tapes. White or Black finish.
- Delivered in standard 6.6 ft (2 m) lengths.
- Extra heatsinking to accommodate medium power LED tapes.
- Its use increases the lifetime of your LED strip.
- Compatible with recessed installation accessories.
- Cable Feed: End (E)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.6"L: Run length (inch)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)3 W/Ft5.2 W/Ft
- Lumens(Approx)300 Lm/Ft490 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume Premier Eco (L3D0E)eldoLED ECO DALIeldoLED SOLO DMX
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- Environment
- Mounting TypeCeiling RecessedMillwork RecessedDrywall
- HousingFixture
- Housing Depth0.52 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVARIOLED-1512
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
