LED Linear
VarioLED. LD IP67 Static White/Tunable White/RGB.
Configure
Add to project
RESOURCES
DESCRIPTION

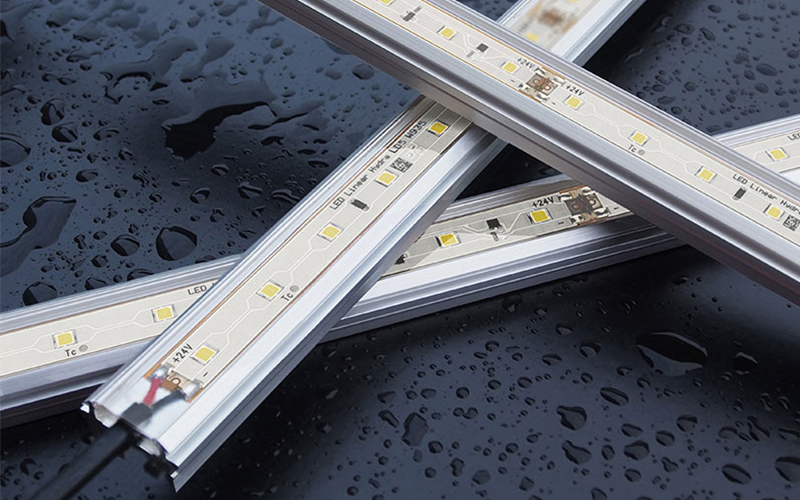

VarioLED IP67 fixtures are fully encapsulated linear LED light lines in aluminum profiles with excellent heat dissipation and very high lumen packages of up to 785 lm/ft. Suitable for surface mounting and recessed installation. Optimal for the indirect illumination of outdoor facades, baths, shower rooms, workshops, and any other dusty or humid areas.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.79"L: Run length (inch)H: 0.78"
- Light SourceLED
- CCT/Color2400K or less3000K3500K4000K4500K5000KTunable WhiteRGB
- CRI80 90
- Watt(Approx)1.5 W/Ft3.1 W/Ft4.6 W/Ft7.6 W/Ft
- Lumens(Approx)112 Lm/Ft139 Lm/Ft222 Lm/Ft365 Lm/Ft581 Lm/Ft735 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume Premier Eco (L3D0E)eldoLED ECO DALIeldoLED SOLO DMX
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance60000 h30000 h
- CertificatesETLT24*
- EnvironmentIP67
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVarioLED-IP67-H-LD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
