Luminoso Led

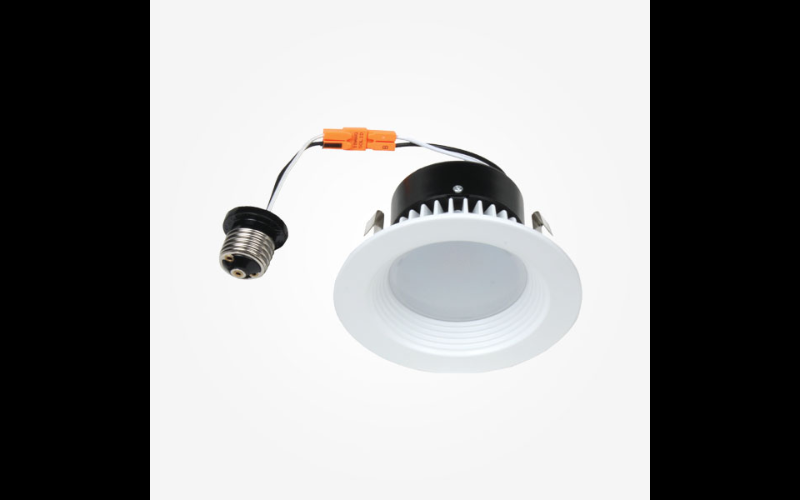

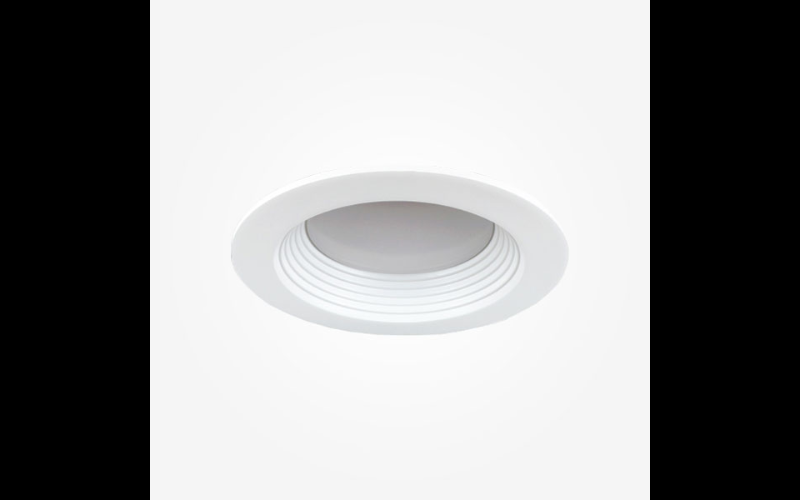

DL4-RB. 4 INCH LED ROUND RETROFIT MODULE-TRIM.
Configure
Add to project
RESOURCES
DESCRIPTION
The Luminoso LED retrofit trims are designed for use with Luminoso 4″ Dedicated housing and are compatible with most 4″ recessed standard housings with 4″ openings.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5"L: 5"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI90
- Watt(Approx)11 W
- Lumens(Approx)620 Lm700 Lm750 Lm780 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/Leading
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULEnergy Star*
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingRetrofit
- Housing Depth3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDL4-RB
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
